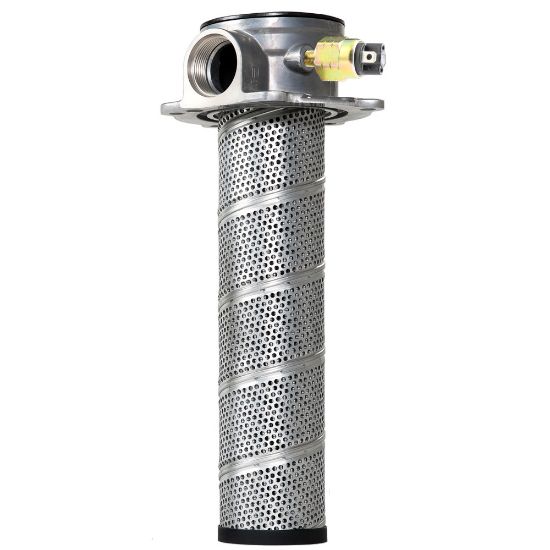

PT4310QVSGS16W - Low Pressure Tank Top Filters PT Series

Name: PT4310QVSGS16W - Low Pressure Tank Top Filters PT Series
SKU: PT4310QVSGS16W
Availability: LimitedAvailability

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.

Manufacturer: Parker

Availability:

1 Limited Stock

Olivette, MO

Partner Available:

Backordered

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU PT4310QVSGS16W

POR

Products specifications

Attribute name	Attribute value
UOM	EA	Options	Steel weld ring
Flow Rate	55 gpm (208.2 lpm)	Filter Element Type	10Q Microglass
Port Connection Type	SAE-16	Indicator Type	Pressure Switch
Seal Material	Fluorocarbon	Bypass Valve Pressure Rating	25 psid (1.7 bar)
Mounting Style	Tank Mounted	Flow Rate	208.2 L/min
Weight	1.21 kg	Indicator Type	Pressure switch
Housing Material	Aluminum	Compatible Element	936878
Maximum Operating Temperature	107.0 °C	Seal Material	Fluorocarbon
Options	Tank Mounted	Bypass Valve Pressure Rating	1.7 bar
Indicator Pressure Setting	Steel Weld Ring	Pressure Rating	10.3 bar
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Filter Element Type	10Q Microglass
