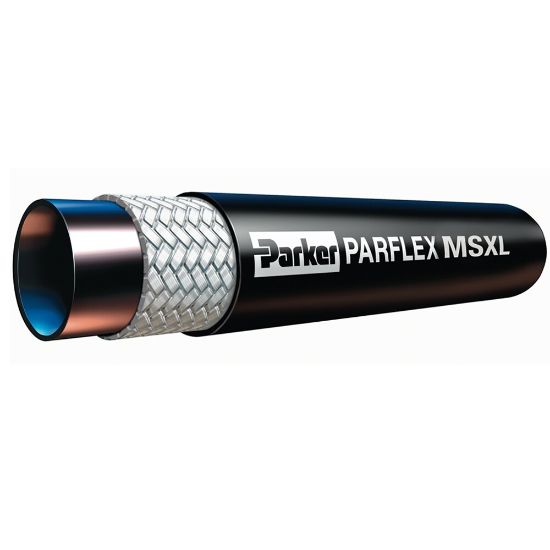

MSXL-5 - Marine Hose – MSXL Hydraulic Hose for Steering 1500 psi

MXSL hydraulic hose is specifically designed for marine steering systems. Sea water resistant.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	1777 in stock

SKU MSXL-5

$5.54/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	5/16
Maximum Operating Pressure	1500 psi	Weight	0.05 lb/ft
Inside Diameter	8 mm	Outside Diameter	0.500 inch
Compatible Fitting	MS Series (permanent only)	Division	Parflex Division
Size	-5	Maximum Operating Temperature	85 °C
Media	Petroleum Hydraulic Fluids	Hose Inner Tube Material	Polyamide (PA)
Design Factor	4:1	Application	Marine Steering
Hose Reinforcement Material	Aramid Fiber	Minimum Bend Radius	2-1/4 inch
Minimum Operating Temperature	-40 °F	Cover Material	Polyurethane
