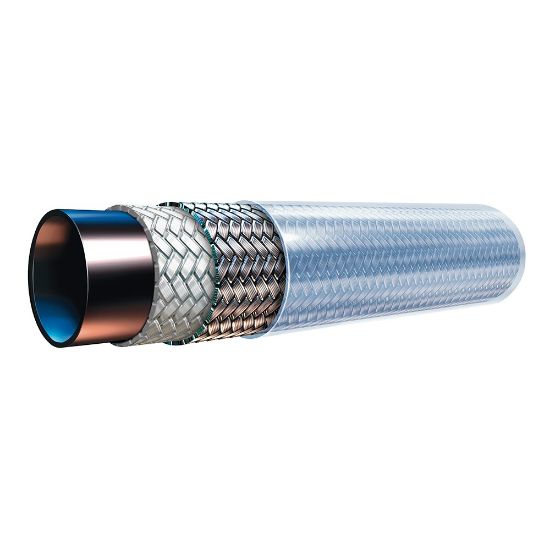

PTH-3-BLK-500 - Marine Power Tilt Hose - PTH Series

Name: PTH-3-BLK-500 - Marine Power Tilt Hose - PTH Series
SKU: PTH-3-BLK-500
Price: 7.93 USD
Availability: InStock

Marine Power Tilt Hose features a polyurethane cover over a compact, abrasion resistant hose. It is designed for power tilt mechanisms, trim tab assemblies and jack plate assemblies.

Manufacturer: Parker

Availability:

409 in stock

Olivette, MO

409

Partner Available:

525 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU PTH-3-BLK-500

$7.93/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/16
Application	Marine	Maximum Operating Pressure	3000
Inside Diameter	3/16	Outside Diameter	0.430
Weight	0.08	Cover Material	Polyurethane
Minimum Operating Temperature	-40	Hose Reinforcement Material	Fiber and Stainless Steel Wire
Specifications Met	n/a	Minimum Bend Radius	19
Maximum Operating Temperature	212	Compatible Fitting	92 Series
Hose Inner Tube Material	Polyamide (PA)	Media	Petroleum Hydraulic Fluids
Design Factor	4	Cover Color	Black
Division	Parflex Division	Size	-3
