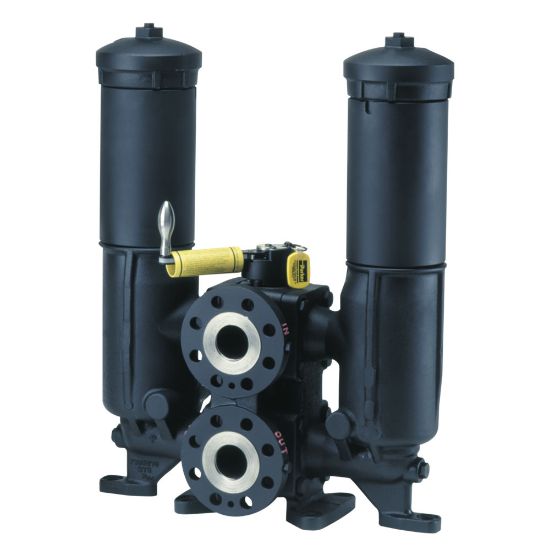

MPD110QEM2M250B21 - Medium Pressure Inline Duplex Filter MPD Series

The Parker MPD's innovative modular design provides solutions across a broad range of industrial applications. Allowable operating pressure of 1200 PSI/82.8 Bar and capable of flows up to 150 GPM/581 LPM depending on viscosity.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU MPD110QEM2M250B21

$10,550.55/each

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Rate	100 gpm (378.5 lpm)
Port Connection Type	2 inch 300 lb RF ANSI Flange (500psi)	Micron Rating	10Q Microglass
Bypass Valve Pressure Rating	50 psi (3.5 bar)	Options	None
Seal Material	Nitrile	Indicator Type	visual auto reset, visual auto reset
Port Type	2 inch 300 lb RF ANSI Flange (500psi)	Flow Rate	100.0 Gal/min
Product Style	Hydraulic Filter	Mounting Style	Inline
Compatible Element	935518Q	Indicator Pressure Setting	3.5 bar
Weight	215 lb	Options	None
Seal Material	Nitrile	Maximum Operating Temperature	71.0 °C
Micron Rating	10Q Microglass	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Filter Element Type	Coreless	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Pressure Rating	34 bar	Indicator Type	visual auto reset, visual auto reset
Housing Material	Ductile Iron and Steel	Bypass Valve Pressure Rating	3.5 bar
Product Type	Hydraulic Filter
