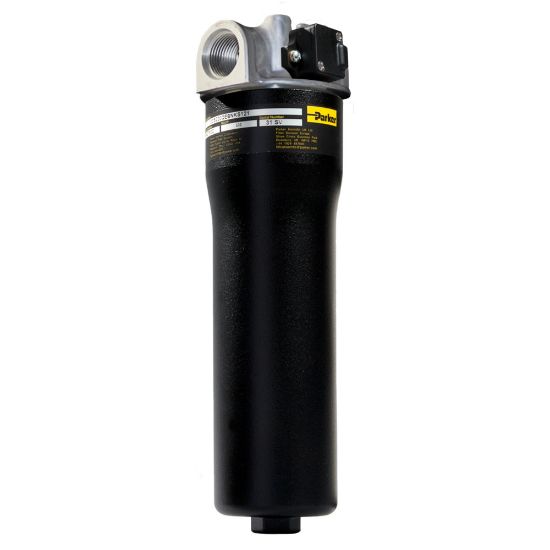

12CS202QEBEKS121 - Medium Pressure Inline Filter 12CS/50CS Series

The Parker 12CS/50CS Coreless Medium Pressure Spin-On Filter Series are the Smart Alternative to Spin-on Cans. Max allowable operating pressure of 500 PSI/34.5 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU 12CS202QEBEKS121

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Options	No options	Indicator Type	Electrical with 12 inch flying leads, right
Port Connection Type	SAE-12 integral threads	Flow Rate	25 gpm (95 lpm)
Micron Rating	02Q Microglass	Bypass Valve Pressure Rating	50 psid (3.5 bar)
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Filter Element Type	Coreless
Micron Rating	02Q Microglass	Pressure Rating	500 psi
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Options	No options
Seal Material	Nitrile	Maximum Operating Temperature	225.0 °F
Housing Material	Bowl - wrought aluminum; Head - cast aluminum	Bypass Valve Pressure Rating	3.5 bar
Product Type	Hydraulic Filter	Indicator Type	Electrical with 12 inch flying leads, right
Product Style	Hydraulic Filter	Mounting Style	Inline
Compatible Element	940765Q	Port Type	SAE-12 integral threads
Flow Rate	25.0 Gal/min	Weight	3 lbs (1.4 kg)
Indicator Pressure Setting	3.5 bar
