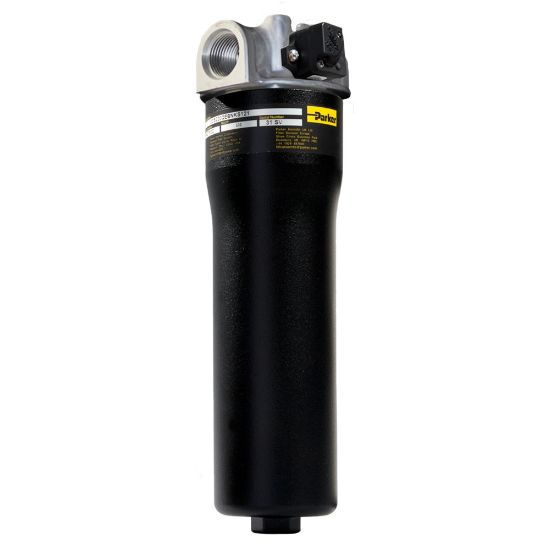

12CS202QEBMGS121 - Medium Pressure Inline Filter 12CS/50CS Series

The Parker 12CS/50CS Coreless Medium Pressure Spin-On Filter Series are the Smart Alternative to Spin-on Cans. Max allowable operating pressure of 500 PSI/34.5 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU 12CS202QEBMGS121

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Options	No options	Indicator Type	Visual with push to test, right
Port Connection Type	SAE-12 integral threads	Flow Rate	25 gpm (95 lpm)
Micron Rating	02Q Microglass	Bypass Valve Pressure Rating	25 psid (1.7 bar)
Housing Material	Bowl - wrought aluminum; Head - cast aluminum	Product Type	Hydraulic Filter
Indicator Type	Visual with push to test, right	Compatible Element	940765Q
Product Style	Hydraulic Filter	Mounting Style	Inline
Port Type	SAE-12 integral threads	Flow Rate	25.0 Gal/min
Weight	3 lbs (1.4 kg)	Pressure Rating	34.5 bar
Indicator Pressure Setting	1.7 bar	Filter Element Type	Coreless
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Micron Rating	02Q Microglass
Maximum Operating Temperature	107.0 °C	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Seal Material	Nitrile	Options	No options
Bypass Valve Pressure Rating	25.0 psid
