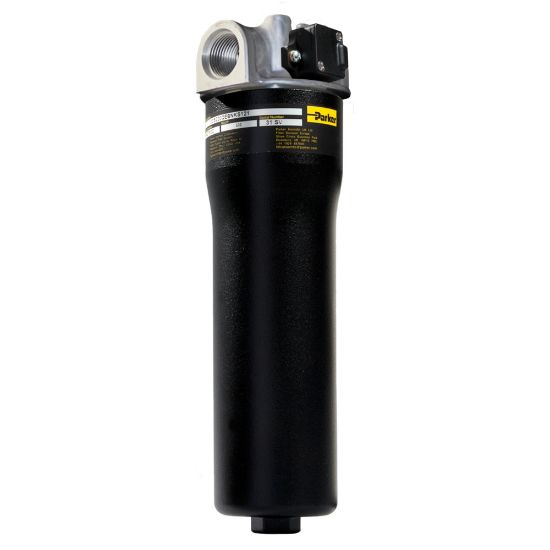

12CS205QEVALKS121 - Medium Pressure Inline Filter 12CS/50CS Series

The Parker 12CS/50CS Coreless Medium Pressure Spin-On Filter Series are the Smart Alternative to Spin-on Cans. Max allowable operating pressure of 500 PSI/34.5 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU 12CS205QEVALKS121

Products specifications

Attribute name	Attribute value
UOM	EA	Options	No options
Flow Rate	25 gpm (95 lpm)	Micron Rating	05Q Microglass
Seal Material	Fluorocarbon	Indicator Type	Analog with 12 inch flying leads, left
Port Connection Type	SAE-12 integral threads	Bypass Valve Pressure Rating	50 psid (3.5 bar)
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Pressure Rating	34.5 bar
Filter Element Type	Coreless	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Seal Material	Fluorocarbon	Micron Rating	05Q Microglass
Maximum Operating Temperature	107.0 °C	Options	No options
Product Type	Hydraulic Filter	Bypass Valve Pressure Rating	3.5 bar
Housing Material	Bowl - wrought aluminum; Head - cast aluminum	Product Style	Hydraulic Filter
Indicator Type	Analog with 12 inch flying leads, left	Compatible Element	940764Q
Flow Rate	25.0 Gal/min	Mounting Style	Inline
Port Type	SAE-12 integral threads	Weight	3 lbs (1.4 kg)
Indicator Pressure Setting	50.0 psid
