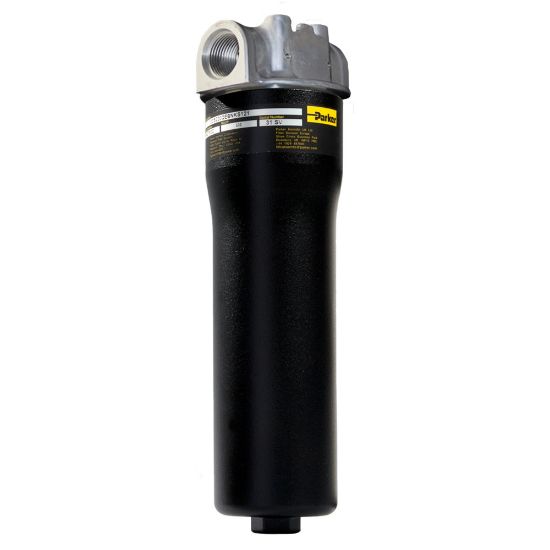

12CS210QEBNGS121 - Medium Pressure Inline Filter 12CS/50CS Series

The Parker 12CS/50CS Coreless Medium Pressure Spin-On Filter Series are the Smart Alternative to Spin-on Cans. Max allowable operating pressure of 500 PSI/34.5 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU 12CS210QEBNGS121

$208.23/each

Products specifications

Attribute name	Attribute value
UOM	EA	Options	No options
Flow Rate	25 gpm (95 lpm)	Micron Rating	10Q Microglass
Seal Material	Nitrile	Indicator Type	No indicator
Port Connection Type	SAE-12 integral threads	Bypass Valve Pressure Rating	25 psid (1.7 bar)
Mounting Style	Inline	Flow Rate	95.0 L/min
Port Type	SAE-12 integral threads	Indicator Pressure Setting	25.0 psid
Weight	3 lbs (1.4 kg)	Pressure Rating	34.5 bar
Filter Element Type	Coreless	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Micron Rating	10Q Microglass	Maximum Operating Temperature	107.0 °C
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Bypass Valve Pressure Rating	25.0 psid
Options	No options	Seal Material	Nitrile
Product Type	Hydraulic Filter	Housing Material	Bowl - wrought aluminum; Head - cast aluminum
Compatible Element	940763Q	Product Style	Hydraulic Filter
Indicator Type	No indicator
