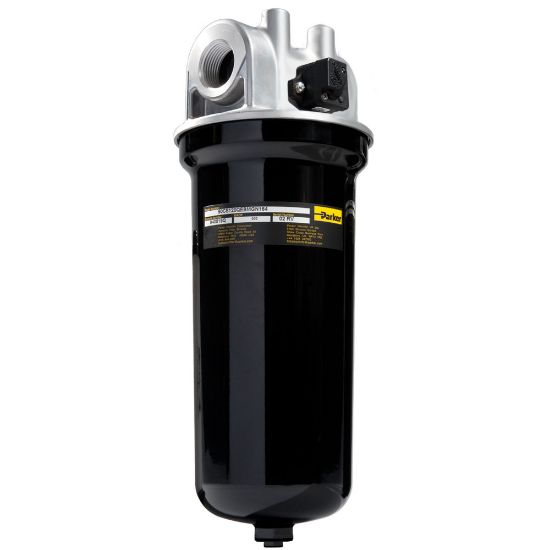

50CS110QEBMLKS164 - Medium Pressure Inline Filter 12CS/50CS Series

The Parker 12CS/50CS Coreless Medium Pressure Spin-On Filter Series are the Smart Alternative to Spin-on Cans. Max allowable operating pressure of 500 PSI/34.5 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU 50CS110QEBMLKS164

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Indicator Type	Visual with push to test, left	Bypass Valve Pressure Rating	50 psid (3.5 bar)
Micron Rating	10Q Microglass	Options	Drain port
Flow Rate	55 GPM (208 LPM)	Port Connection Type	SAE-16 integral threads
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Product Type	Hydraulic Filter
Pressure Rating	500 psi	Housing Material	Aluminum
Flow Rate	208.0 L/min	Port Type	SAE-16 integral threads
Maximum Operating Temperature	225.0 °F	Seal Material	Nitrile
Micron Rating	10Q Microglass	Weight	6 lb
Product Style	Hydraulic Filter	Options	Drain port
Mounting Style	Inline	Filter Element Type	Coreless
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Compatible Element	940818Q
Indicator Type	Visual with push to test, left	Indicator Pressure Setting	3.5 bar
Bypass Valve Pressure Rating	3.5 bar
