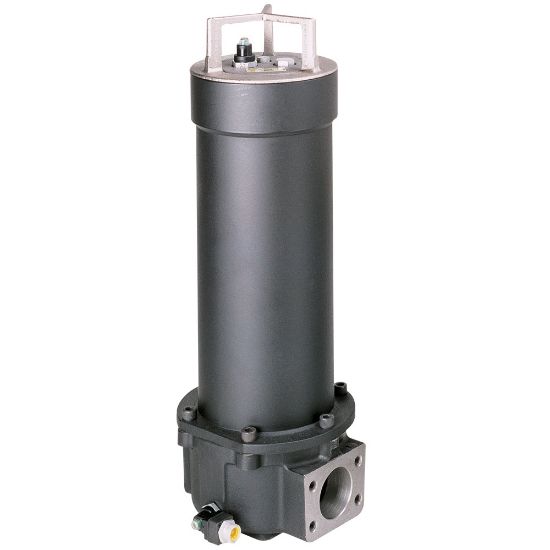

IL82R20QEM2P50YY1 - Medium Pressure Inline Filter IL8 Series

Parker's IL8 Inline Filters combines high efficiency Quantumfiber filtration with low cost installation. Allowable operating pressure of 500 PSI/34.5 Bar and capable of flows up to 425 GPM/1609 LPM depending on viscosity.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU IL82R20QEM2P50YY1

$4,484.15/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Options	None	Bypass Valve Pressure Rating	50 psi (3.4 bar)
Flow Rate	200 gpm (757 lpm)	Indicator Type	visual auto reset, indicator/port only
Port Connection Type	SAE 2 inch flange face	Micron Rating	20QE microglass
Indicator Pressure Setting	50 psid	Weight	50 lb
Seal Material	Nitrile	Maximum Operating Temperature	225.0 °F
Micron Rating	20QE Microglass	Pressure Rating	500
Filter Element Type	cartridge	For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Indicator Type	visual auto reset, indicator/port only
Housing Material	bowl - low carbon steel; cover - anodized aluminum	Product Type	Hydraulic Filter
Bypass Valve Pressure Rating	50 psid	Options	none
Port Type	SAE 2 inch flange face	Flow Rate	757.0 L/min
Mounting Style	inline	Compatible Element	933837Q
Product Style	Hydraulic Filter
