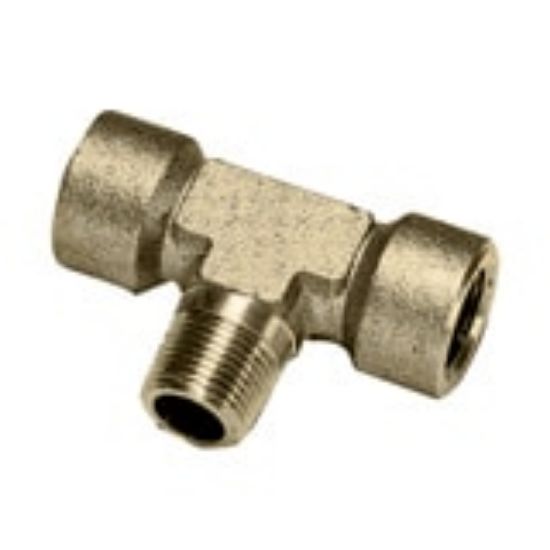

0158 10 10 - Metric Adapters

Parker offers a wide range of adaptors compatible with the various Parker Legris fitting systems.
This range of products provides a complete solution covering numerous applications, both in non-corrosive and corrosive environments.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 45 days
Partner Available:	8 in stock

SKU 0158 10 10

$33.14/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Branch Tee
Style	Male to Female	Body Material	BRASS
Connection 1 Style	BSPT	Connection 2 Style	BSPP
Connection 1 Thread Size (metric)	R1/8	Connection 2 Thread Size (metric)	G1/8
Maximum Operating Temperature	150 °C	Minimum Operating Temperature	-40 °C
Maximum Operating Pressure	60 bar	Division	Fluid System Connectors Division

Product resources

Literature and Reference Materials

FSC Parker Legris Connectors & Nycoil Tubing Catalog - Cat. 3500LEG/NYC (PDF)
