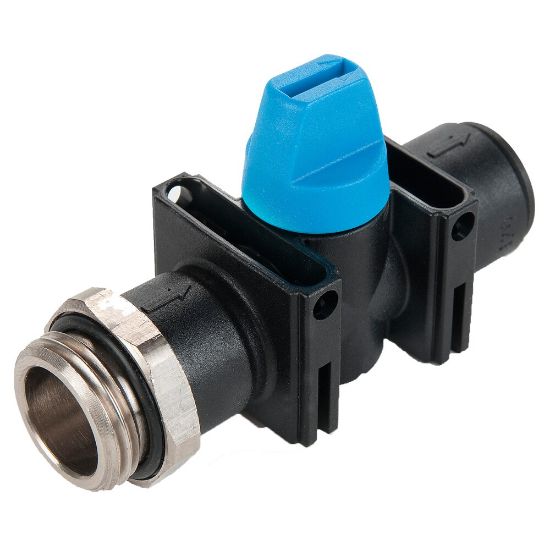

MV308-12M-8G - Mini Ball Valves

Parker's mini ball valves enable in-line opening and closing of a pneumatic circuit. These polymer lightweight ball valves allow for a significant reduction in installation time while offering full flow capability and compact dimensions.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU MV308-12M-8G

$85.06/each

Products specifications

Attribute name	Attribute value
UOM	EA	Media	Compressed Air
Product Type	Mini Ball Valve	Connection Size	12 x G1/2 mm
Function	2-Way, Normally Open, Normally Closed	Orifice Size	.38
Configuration	Tube to Pipe	Specifications Met	N/A
Minimum Operating Temperature	-4 °F	Ball Material	Brass
Application	Pneumatics,Packaging, Vacuum,Robotics, Textile	Mounting Type	Panel
Maximum Operating Pressure	10 bar	Handle Type	Nylon
Operation Type	n/a	Vacuum Pressure Rating	28 Inch-Hg
Vented	No	Body Material	Nylon
Actuation Type	Manual	Shape	In-Line
Seal Material	NBR	Seat Material	Nylon
Connection Type	PTC X BSPP	Maximum Flow Rate	N/A
Division	Fluid System Connectors Division	Stem Material	Brass
Gripping Ring Material	Stainless Steel	Maximum Operating Temperature	80 °C
