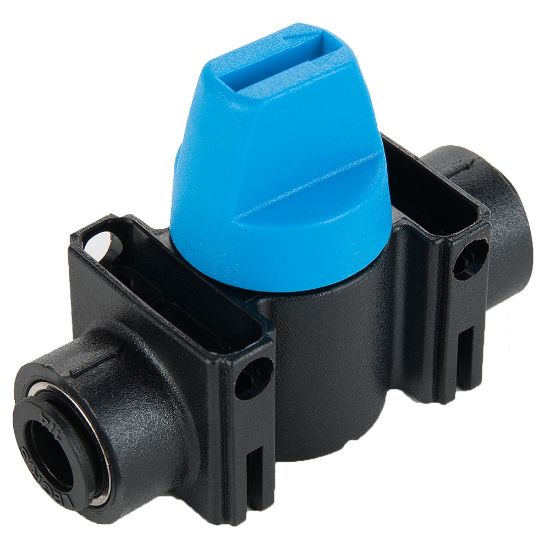

MV309-8M - Mini Ball Valves

Parker's mini ball valves enable in-line opening and closing of a pneumatic circuit. These polymer lightweight ball valves allow for a significant reduction in installation time while offering full flow capability and compact dimensions.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	41 in stock

SKU MV309-8M

$48.73/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Vented	No
Maximum Operating Pressure	145 psi	Vacuum Pressure Rating	28 Inch-Hg
Configuration	Tube to Tube	Orifice Size	.24
Body Material	Nylon	Handle Type	Nylon
Application	Pneumatics,Packaging, Vacuum,Robotics, Textile	Actuation Type	Manual
Connection Type	PTC	Division	Fluid System Connectors Division
Operation Type	n/a	Maximum Flow Rate	N/A
Seat Material	Nylon	Shape	In-Line
Media	Compressed Air	Seal Material	NBR
Maximum Operating Temperature	80 °C	Connection Size	8 x 8 mm
Gripping Ring Material	Stainless Steel	Stem Material	Brass
Product Type	Mini Ball Valve	Function	2-Way, Normally Open, Normally Closed
Minimum Operating Temperature	-4 °F	Ball Material	Brass
Specifications Met	N/A	Mounting Type	Panel
