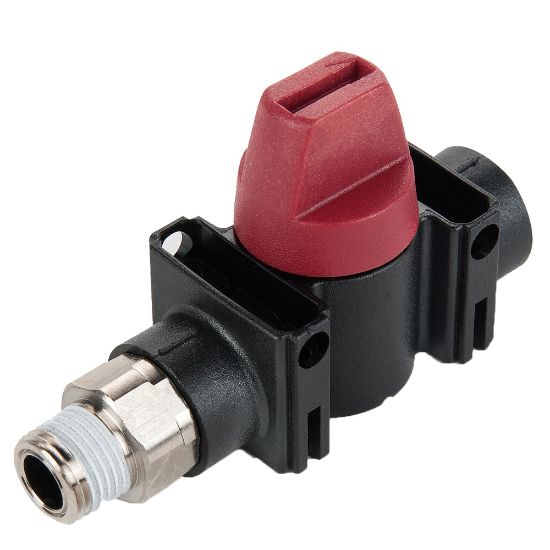

MVV308-6-4 - Mini Ball Valves

Parker's mini ball valves enable in-line opening and closing of a pneumatic circuit. These polymer lightweight ball valves allow for a significant reduction in installation time while offering full flow capability and compact dimensions.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 106 days
Partner Available:	Backordered

SKU MVV308-6-4

$43.43/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Nylon
Shape	In-Line	Handle Type	Nylon
Operation Type	n/a	Vacuum Pressure Rating	28 Inch-Hg
Actuation Type	Manual	Maximum Operating Pressure	10 bar
Vented	Yes	Configuration	Tube to Pipe
Maximum Operating Temperature	80 °C	Maximum Flow Rate	N/A
Division	Fluid System Connectors Division	Seat Material	Nylon
Connection Type	PTC x NPT	Product Type	Mini Ball Valve
Function	2-Way, Normally Open, Normally Closed	Connection Size	3/8 x 1/4 inch
Gripping Ring Material	Stainless Steel	Stem Material	Brass
Media	Compressed Air	Seal Material	NBR
Mounting Type	Panel	Application	Pneumatics,Packaging, Vacuum,Robotics, Textile
Ball Material	Brass	Specifications Met	N/A
Orifice Size	.17	Minimum Operating Temperature	-4 °F
