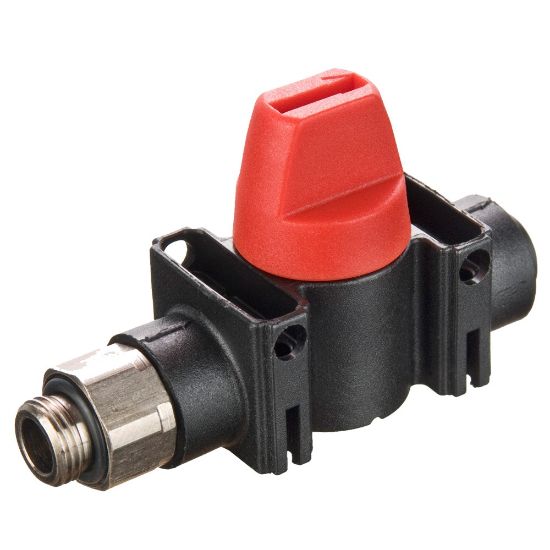

MVV308-6M-2G - Mini Ball Valves

Parker's mini ball valves enable in-line opening and closing of a pneumatic circuit. These polymer lightweight ball valves allow for a significant reduction in installation time while offering full flow capability and compact dimensions.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 115 days
Partner Available:	7 in stock

SKU MVV308-6M-2G

$78.36/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Orifice Size	.16
Configuration	Tube to Pipe	Actuation Type	Manual
Specifications Met	N/A	Ball Material	Brass
Application	Pneumatics,Packaging, Vacuum,Robotics, Textile	Mounting Type	Panel
Operation Type	n/a	Handle Type	Nylon
Maximum Operating Pressure	145 psi	Vacuum Pressure Rating	28 Inch-Hg
Body Material	Nylon	Shape	In-Line
Vented	Yes	Seal Material	NBR
Gripping Ring Material	Stainless Steel	Stem Material	Brass
Maximum Operating Temperature	175 °F	Seat Material	Nylon
Maximum Flow Rate	N/A	Connection Type	PTC x NPT
Division	Fluid System Connectors Division	Minimum Operating Temperature	-4 °F
Media	Compressed Air	Product Type	Mini Ball Valve
Connection Size	6 x G1/8 mm	Function	2-Way, Normally Open, Normally Closed
