*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

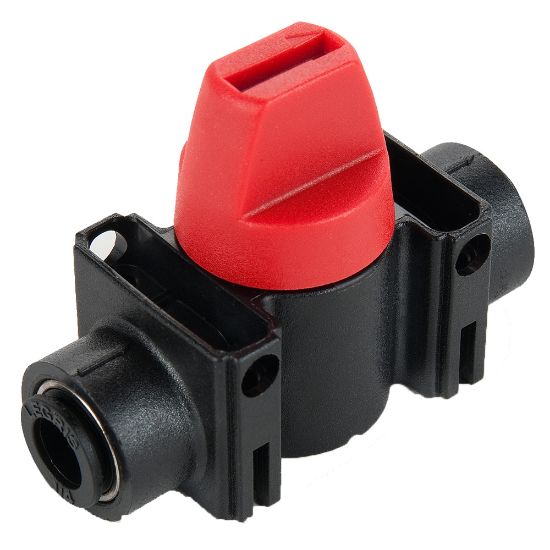

MVV309-4 - Mini Ball Valves

Parker's mini ball valves enable in-line opening and closing of a pneumatic circuit. These polymer lightweight ball valves allow for a significant reduction in installation time while offering full flow capability and compact dimensions.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	1 Limited Stock

SKU MVV309-4

$43.11/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Stem Material	Brass
Function	2-Way, Normally Open, Normally Closed	Product Type	Mini Ball Valve
Connection Size	1/4 x 1/4 inch	Media	Compressed Air
Application	Pneumatics,Packaging, Vacuum,Robotics, Textile	Specifications Met	N/A
Orifice Size	.17	Mounting Type	Panel
Ball Material	Brass	Minimum Operating Temperature	-4 °F
Vacuum Pressure Rating	28 Inch-Hg	Shape	In-Line
Body Material	Nylon	Operation Type	n/a
Handle Type	Nylon	Vented	Yes
Actuation Type	Manual	Configuration	Tube to Tube
Maximum Operating Pressure	145 psi	Gripping Ring Material	Stainless Steel
Maximum Operating Temperature	80 °C	Seal Material	NBR
Maximum Flow Rate	N/A	Seat Material	Nylon
Division	Fluid System Connectors Division	Connection Type	PTC
