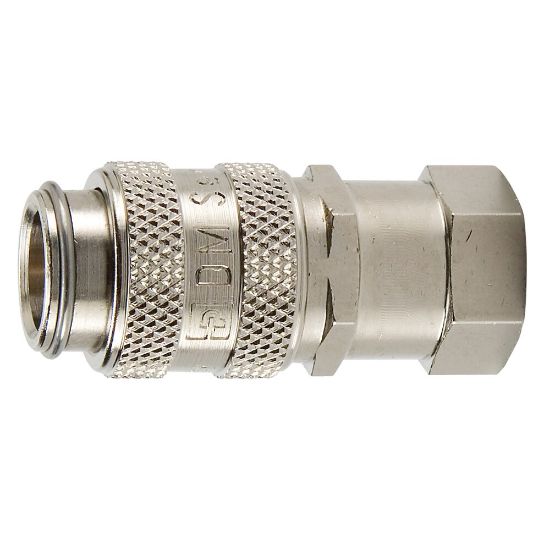

DM-121-2FP - Miniature Size, Double Shut-off, Push to Connect Quick Couplings - DM Series

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 106 days
Partner Available:	Backordered

SKU DM-121-2FP

$22.10/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Size	1/8
Connection Thread Size	1/8 - 27	Coupling Half	Female Coupler
Connection Type	Female NPTF	Product Type	Push to connect
Plating Type	Nickel Plated	Seal Material	Fluorocarbon
Application	Fluid or gas, low pressure	Flow Rate	0.8 Gal/min
Hex Size	0.55 inch	Minimum Operating Temperature	-15.0 °F
Body Material	Steel	Maximum Operating Pressure	250.0 psi
Maximum Operating Temperature	400.0 °F	Valve Type	Poppet
Division	Quick Coupling Division
