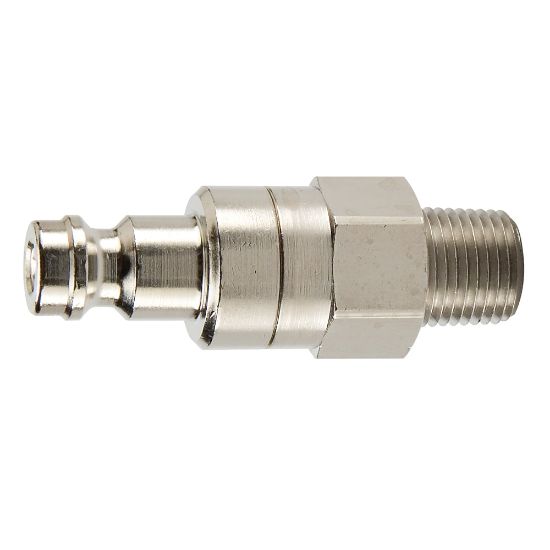

DM-122-4MP - Miniature Size, Double Shut-off, Push to Connect Quick Couplings - DM Series

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 47 days
Partner Available:	Backordered

SKU DM-122-4MP

$23.78/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Thread Size	1/4 - 18
Connection Type	Male UNF	Coupling Half	Male Nipple
Body Size	1/8	Product Type	Push to connect
Seal Material	Fluorocarbon	Maximum Operating Temperature	400.0 °F
Minimum Operating Temperature	-15.0 °F	Hex Size	0.55 inch
Plating Type	Nickel Plated	Maximum Operating Pressure	250.0 psi
Body Material	Brass	Flow Rate	0.8 Gal/min
Application	Fluid or gas, low pressure	Division	Quick Coupling Division
Valve Type	Poppet

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
