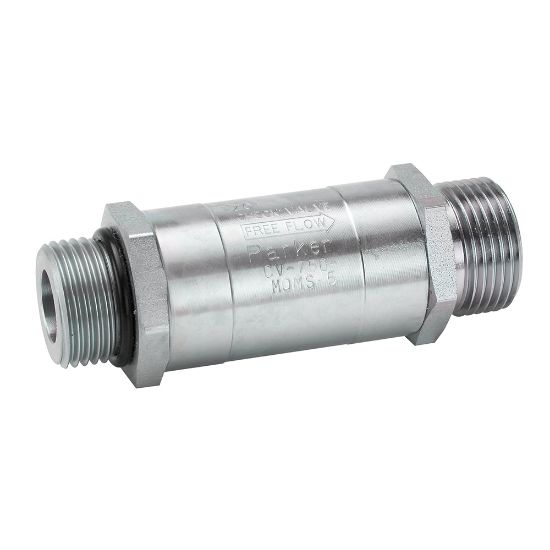

CV-370-MOMS-5 - Modular, High Flow, Hydraulic In Line Check Valves - CV Series

Parker's, in line check valves are one way flow control devices used primarily in hydraulic systems to eliminate potential damage caused by fluid back pressure.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 24 days
Partner Available:	Backordered

SKU CV-370-MOMS-5

$76.82/each

Products specifications

Attribute name	Attribute value
UOM	EA	Outlet Port Connection Type	Male Seal-Lok
Inlet Port Connection Type	Male SAE O-ring Straight Thread	Inlet Port Size (inch)	9/16 - 18 UNF
Outlet Port Size (inch)	11/16-16 UN	Cracking Pressure (psi)	5
Body Size (inch)	3/8	Mounting Type	Threaded
Minimum Operating Temperature	250 °F	Seat Type	Metal Seal
Maximum Operating Pressure	3000 psi	Actuation Type	Mechanical
Configuration	n/a	Body Material	Steel
Connection Type	Male ORB to Male Seal-Lok ORFS	Division	Quick Coupling Division
Maximum Flow Rate	n/a	Maximum Operating Temperature	-40 °F
Seal Material	Metal	Connection Size	9/16"-18 UNF inch
Flow Direction	n/a
