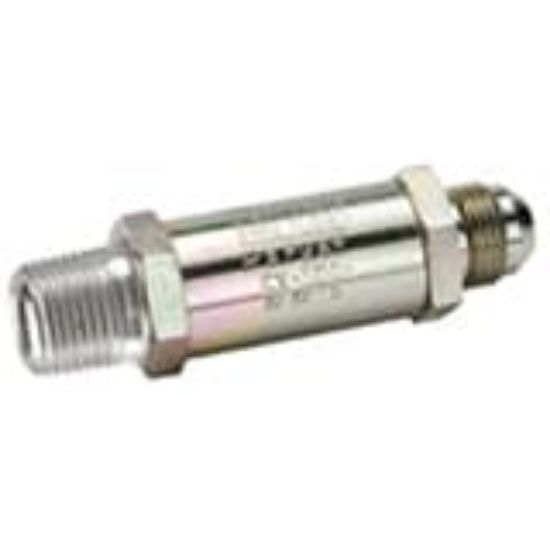

CV-750-MPMF-5 - Modular, High Flow, Hydraulic In Line Check Valves - CV Series

Parker's, in line check valves are one way flow control devices used primarily in hydraulic systems to eliminate potential damage caused by fluid back pressure.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 42 days
Partner Available:	Backordered

SKU CV-750-MPMF-5

$450.90/each

Products specifications

Attribute name	Attribute value
UOM	EA	Inlet Port Connection Type	Male NPTF
Body Size (inch)	3/4	Cracking Pressure (psi)	5
Outlet Port Connection Type	Male JIC 37 degree	Inlet Port Size (inch)	3/4 - 14 NPTF
Outlet Port Size (inch)	1 1/16 - 12 UN	Body Material	Steel
Connection Type	Male NPT JIC to Male Flare JIC	Maximum Operating Temperature	-40 °F
Division	Quick Coupling Division	Seal Material	Metal
Maximum Flow Rate	n/a	Connection Size	1-1/16"-12 UN inch
Flow Direction	n/a	Minimum Operating Temperature	250 °F
Seat Type	Metal Seal	Mounting Type	Threaded
Actuation Type	Mechanical	Configuration	n/a
Maximum Operating Pressure	3000 psi
