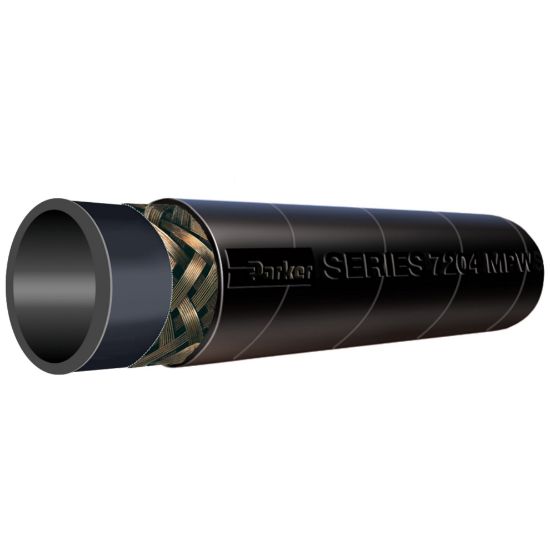

7204-1001 - MPW-1000® High Pressure Wire Braid Multipurpose Oil Resistant Hose, Series 7204

MPW-1000 High Pressure Wire Braid Multipurpose Oil Resistant Hose is designed for air, hot materials, mild chemicals, water, oil, and refined fuels such as biodiesel, diesel, ethanol and gasoline in applications to 300°F and 1000 psi, Series 7204

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	34 in stock

SKU 7204-1001

$24.42/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1
Minimum Bend Radius	304.8 mm	Minimum Operating Temperature	-20 °F
Hose Reinforcement Material	1 Braid of Wire	Cover Material	Chloroprene Rubber (CR)
Cover Structure	Wrapped	Inside Diameter	1 inch
Maximum Operating Pressure	68.9 bar	Package Type	Reel
Outside Diameter	1.500 inch	Specifications Met	n/a
Application	Air	Weight	0.75 lb/ft
Cover Color	Black	Media	Hot Asphalt (Tar)
Hose Inner Tube Material	Nitrile	Length per Package	500 ft
Division	Hose Products Division	Compatible Fitting	43 Series
Maximum Operating Temperature	70 °C (Saturated Steam to 187 @10 bar)

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
