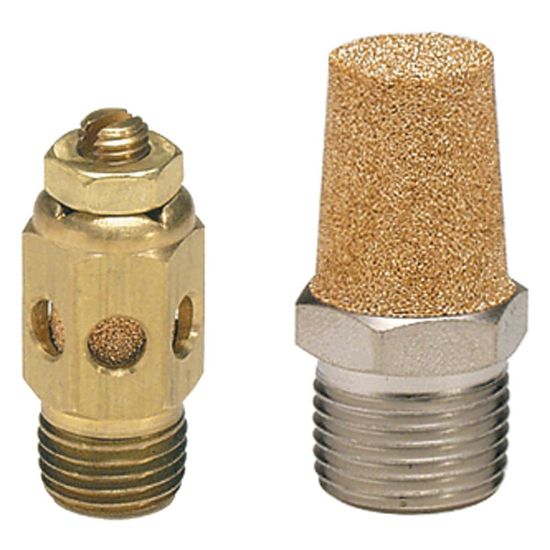

045120012 - Muffler / Flow controls - EM series

Muffler/flow controls provide an acceptable exhaust noise level and effectively meter exhaust. Installed in valve exhaust ports, they control cylinder piston speeds throughout a wide range. The adjusting screw cannot be accidently blown out.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	40 in stock

SKU 045120012

$79.97/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Port Size (inch)	3/4
Type	Muffler / Flow Controls	Product Type	Muffler/Filter
Port Size	3/4	Hex Size	1-1/6 inch
Port Type	NPT (Male Threaded)	Operating Temperature	0° to +300° °F
Maximum Operating Pressure	250 psig	Overall Length	1 to 3.69 inch
Division	Pneumatic Division

Product resources

Literature and Reference Materials

0600P Catalog_Accessories (PDF)
MRO Pneumatic Airline Accessories Catalog (PDF)
0700P Catalog_Airline Accessories (PDF)
