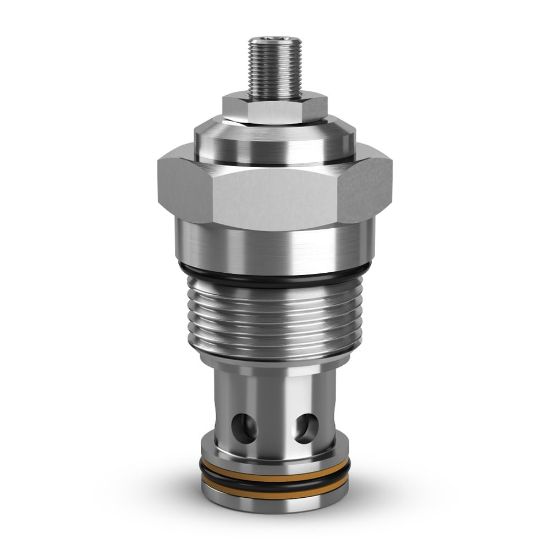

J06A2ZN - Needle Flow Control Valves

Parker offers standard needle valves and needle valves with a reverse free-flow check. Parker’s needle valves are non-compensated adjustable orifices capable of flows up to 225 lpm (60 gpm) and pressures as high as 420 bar (6000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU J06A2ZN

$520.06/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Needle Type	Fine	Adjustment Mechanism	Tamper Resistant
Maximum Inlet Pressure Rating	6000 PSI, 420 BAR	Flow Rate	60 GAL/MIN, 225 L/MIN
Maximum Operating Temperature	+121 °C	Connection Type	N/A
Leak Rate	5 @ 1450 PSI (100 BAR) drops/min	Division	Hydraulic Cartridge Systems Division
Maximum Flow Rate	225 L/min	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Operation Type	Manually operated	Division	Mobile Hydraulic Systems Division Europe
Connection Size	N/A	Function	2-Way
Maximum Inlet Pressure Rating	420 bar	Seal Material	Nitrile
Valve Material	All parts steel. All operating parts hardened steel	Needle Type	Fine
Adjustment Mechanism	Screw	Minimum Operating Temperature	-30 °F
Cavity Size	C16-2	Body Material	N/A
Weight	0.38 kg	Maximum Operating Pressure	6000 psi
Installation Torque	74 lb-ft	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Flow Rate	225 L/min	Actuation Type	Manual
Configuration	Needle	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Operating Temperature	-34 to +121 °C
