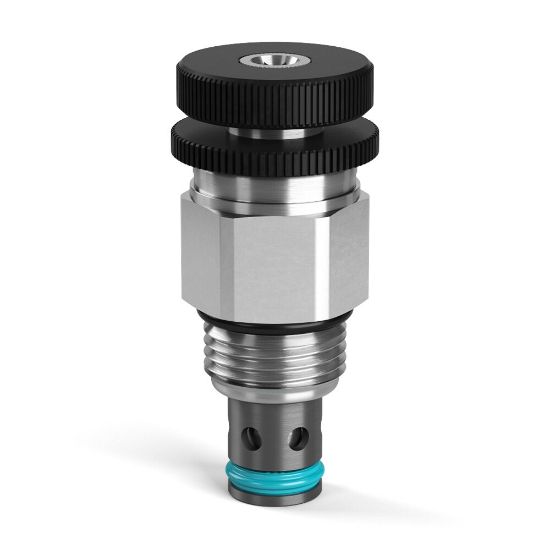

NVH081FK - Needle Flow Control Valves

Parker offers standard needle valves and needle valves with a reverse free-flow check. Parker’s needle valves are non-compensated adjustable orifices capable of flows up to 225 lpm (60 gpm) and pressures as high as 420 bar (6000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU NVH081FK

$48.94/each

Products specifications

Attribute name	Attribute value
UOM	EA	Needle Type	Fine
Seal Material	D-Ring (Standard)	Adjustment Mechanism	Knob
Flow Rate	10 GAL/MIN, 38 L/MIN	Maximum Inlet Pressure Rating	5500 PSI, 380 BAR
Adjustment Mechanism	Knob	Cavity Size	C08-2
Minimum Operating Temperature	-37 °C	Needle Type	Fine
Connection Size	N/A	Function	2-Way
Actuation Type	Manual	Flow Rate	10 Gal/min
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Operating Temperature	-35 to +200 °F	Configuration	Needle
Division	Hydraulic Systems Division	Operation Type	Manually operated
Body Material	N/A	Weight	0.2 lb
Maximum Operating Pressure	380 bar	Installation Torque	31-37 Nm
Maximum Inlet Pressure Rating	5500 psi	Valve Material	All parts steel. All operating parts hardened steel
Seal Material	D-Ring (Standard)	Maximum Operating Temperature	+200 °F
Leak Rate	5 @ 5000 PSI (345 BAR) drops/min	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Division	Hydraulic Cartridge Systems Division	Maximum Flow Rate	10 Gal/min
Connection Type	N/A
