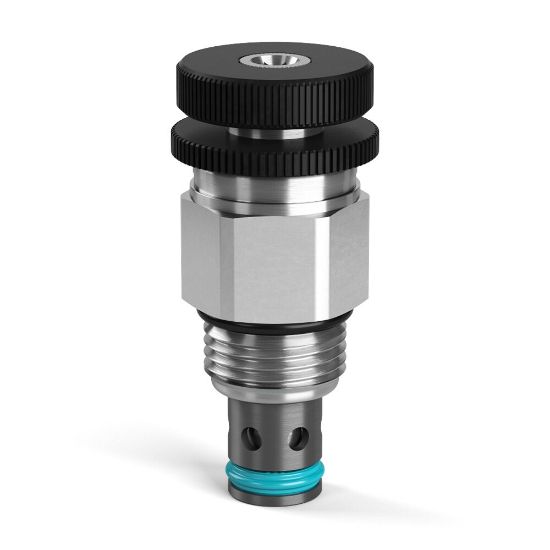

NVH081FTV - Needle Flow Control Valves

Parker offers standard needle valves and needle valves with a reverse free-flow check. Parker’s needle valves are non-compensated adjustable orifices capable of flows up to 225 lpm (60 gpm) and pressures as high as 420 bar (6000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU NVH081FTV

$52.64/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Maximum Inlet Pressure Rating	5500 PSI, 380 BAR	Needle Type	Fine
Adjustment Mechanism	Tamper Resistant	Flow Rate	10 GAL/MIN, 38 L/MIN
Weight	0.1 kg	Maximum Operating Pressure	5500 psi
Body Material	N/A	Installation Torque	31-37 Nm
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Configuration	Needle
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Operating Temperature	-15 to +400 °F
Actuation Type	Manual	Flow Rate	10 Gal/min
Maximum Flow Rate	38 L/min	Connection Type	N/A
Leak Rate	5 @ 5000 PSI (345 BAR) drops/min	Division	Hydraulic Cartridge Systems Division
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Operation Type	Manually operated
Division	Hydraulic Systems Division	Connection Size	N/A
Function	2-Way	Seal Material	Fluorocarbon
Maximum Inlet Pressure Rating	5500 psi	Maximum Operating Temperature	+204 °C
Valve Material	All parts steel. All operating parts hardened steel	Needle Type	Fine
Minimum Operating Temperature	-15 °F	Adjustment Mechanism	Tamper Resistant
Cavity Size	C08-2
