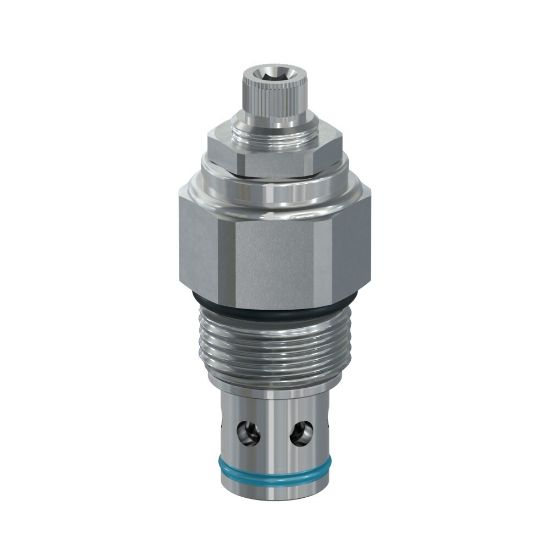

NVH101FK - Needle Flow Control Valves

Parker offers standard needle valves and needle valves with a reverse free-flow check. Parker’s needle valves are non-compensated adjustable orifices capable of flows up to 225 lpm (60 gpm) and pressures as high as 420 bar (6000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU NVH101FK

$54.81/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Inlet Pressure Rating	5500 PSI, 380 BAR
Adjustment Mechanism	Knob	Needle Type	Fine
Seal Material	D-Ring (Standard)	Flow Rate	16 GAL/MIN, 60 L/MIN
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Flow Rate	16 Gal/min
Connection Type	N/A	Division	Hydraulic Cartridge Systems Division
Division	Hydraulic Systems Division	Installation Torque	37-41 lb-ft
Operation Type	Manually operated	Connection Size	N/A
Function	2-Way	Maximum Operating Temperature	+200 °F
Valve Material	All parts steel. All operating parts hardened steel	Seal Material	D-Ring (Standard)
Maximum Inlet Pressure Rating	380 bar	Leak Rate	5 @ 5000 PSI (345 BAR) drops/min
Needle Type	Fine	Adjustment Mechanism	Knob
Cavity Size	C10-2	Minimum Operating Temperature	-37 °C
Body Material	N/A	Actuation Type	Manual
Configuration	Needle	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Maximum Operating Pressure	380 bar	Weight	0.4 lb
Operating Temperature	-35 to +200 °F	Flow Rate	60 L/min
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
