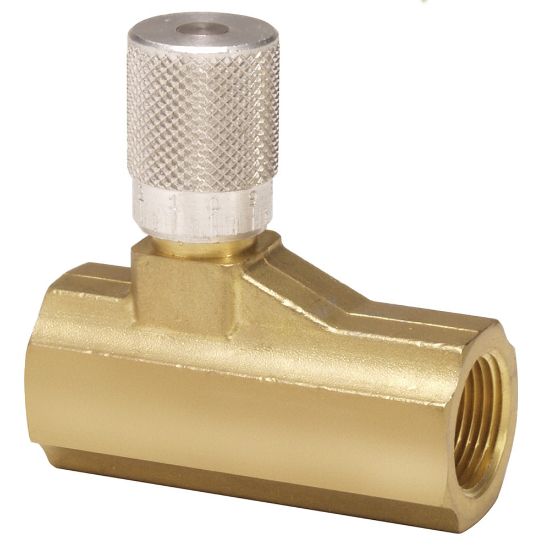

003381101 - Needle Valve - 338 Series

Name: 003381101 - Needle Valve - 338 Series
SKU: 003381101
Price: 65.12 USD
Availability: InStock

The 338 series needle valve bi-directionally meters the flow of air through the valve. The perimeter of the adjustment knob features position markings and an internal fine taper needle, providing precise flow control even at low flow rates.

Manufacturer: Parker

Availability:

100 in stock

Olivette, MO

100

Partner Available:

28 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 003381101

$65.12/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Port Type	NPT
Port Size (inch)	1/4	Port Type	NPT
Operating Temperature	-18 to 82	Operation Type	Knob with Micrometer Position
Body Material	Brass	Lubricant	None
Flow Coefficient	0.28 to 2.62 Cv (metered)	Division	Pneumatic Division
Seal Material	Urethane	Options	Extended Temperature Version
Media	Air	Needle Material	Stainless Steel
Operating Pressure	0 to 250	Product Type	Needle Control Valve
Port Size	1/4	Flow Rate	15 to 140 SCFM (metered)
Port Connection	NPT	Mounting Type	Inline
