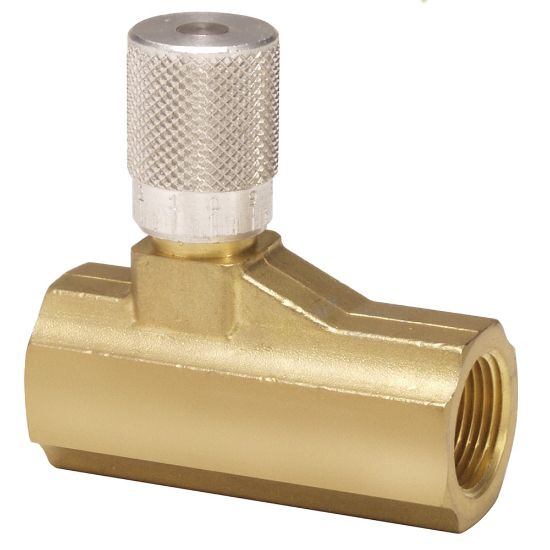

003381104 - Needle Valve - 338 Series

The 338 series needle valve bi-directionally meters the flow of air through the valve. The perimeter of the adjustment knob features position markings and an internal fine taper needle, providing precise flow control even at low flow rates.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	2 Limited Stock

SKU 003381104

$167.08/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Port Size (inch)	3/4
Port Type	NPT	Lubricant	None
Flow Coefficient	0.28 to 2.62 Cv (metered)	Division	Pneumatic Division
Options	Extended Temperature Version	Seal Material	Urethane
Media	Air	Needle Material	Stainless Steel
Port Size	3/4	Operating Pressure	0 to 250
Product Type	Needle Control Valve	Flow Rate	15 to 140 SCFM (metered)
Port Connection	NPT	Mounting Type	Inline
Port Type	NPT	Operating Temperature	-18 to 82
Operation Type	Knob with Micrometer Position	Body Material	Brass
