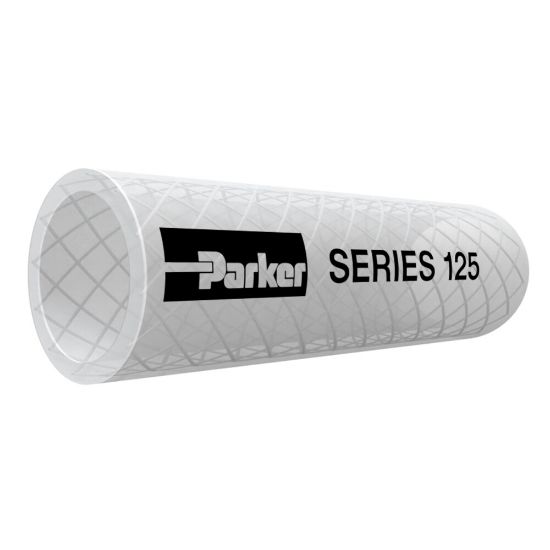

125-32000100 - NEXBRAID® PVC Clear Standard Wall General Service Hose, Series 125

Nexbraid PVC Clear Standard Wall General Service Hose is designed for transfer of abrasives, air, food particulates, sanitary products and potable water in applications to 150°F and 250 psi, Series 125

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 15 days
Partner Available:	518 in stock

SKU 125-32000100

$17.80/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	2
Maximum Working Pressure (psi)	75	Specifications Met	EU Resolution AP (89)
Minimum Operating Temperature	-5 °C	Hose Reinforcement Material	2 Plies of Textile
Cover Structure	Smooth	Minimum Bend Radius	n/a
Package Type	Coil	Application	PVC Hose
Weight	1.41 kg/m	Outside Diameter	63.3 mm
Maximum Operating Pressure	5.2 bar	Vacuum Pressure Rating	Light
Inside Diameter	2 inch	Cover Color	Blue
Division	Hose Products Division	Length per Package	100 ft
Division	Hose Products Division	Hose Inner Tube Material	PVC
Maximum Operating Temperature	150 °F	Media	Food Abrasive Powders (Sugar)
Cover Material	PVC

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
