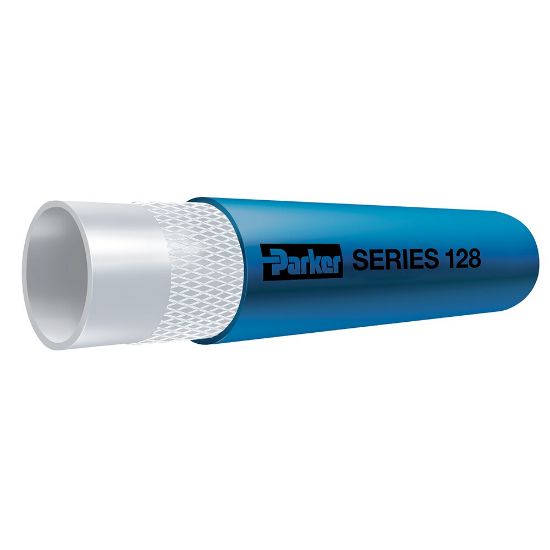

128-10006200 - NEXBRAID® PVC Potable Water By-Pass Hose, Series 128

Nexbraid PVC Potable Water By-Pass Hose is designed as a temporary conduit for water supply during construction, maintenance and repair of pipe to 150°F and 250 psi, Series 128

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 15 days
Partner Available:	Backordered

SKU 128-10006200

$2.49/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	5/8
Maximum Working Pressure (psi)	250 at 68F	Weight	0.10 kg
Cover Color	Blue	Length per Package	200 ft
Division	Hose Products Division	Maximum Operating Temperature	65 °C
Hose Inner Tube Material	Clear/Blue Tint	Media	Water (Potable Water)
Minimum Operating Temperature	-13 °F	Minimum Bend Radius	n/a
Hose Reinforcement Material	2 Plies of Textile	Cover Material	PVC
Cover Structure	Smooth	Specifications Met	FDA
Application	PVC Hose	Inside Diameter	15.9 mm
Maximum Operating Pressure	17.2 bar at 20°C	Package Type	Coil
Outside Diameter	0.931 inch

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
