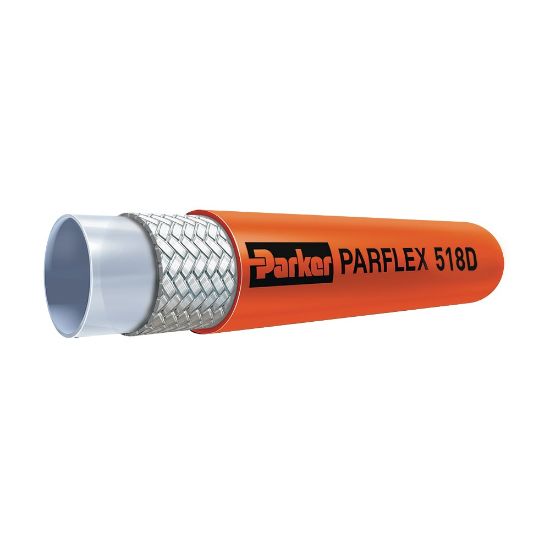

Picture of 518D-4 - Non-Conductive Thermoplastic Hoses - 518D

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

518D-4 - Non-Conductive Thermoplastic Hoses - 518D

Parker’s Non-Conductive 100R7 hose has a high-density braid to handle maximum impulse life. Most 518D sizes feature a nylon core tube. Available as a formed hose and/or bonded hose.
Manufacturer: Parker
Availability:
2863 in stock
Olivette, MO801
Wichita, KS638
Kansas City, KS507
Peoria, IL273
Decatur, IL218
Joplin, MO216
Springfield, MO113
COLUMBIA, MO74
TOPEKA, KS20
Partner Available:18821 in stock
Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.
SKU 518D-4
$4.73/foot
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTMaterial - Hose Inner TubeNylon
Hose I.D. (inch)1/4MediaPetroleum Hydraulic Fluids
Cover MaterialPolyurethaneMinimum Operating Temperature-40 °C
Minimum Bend Radius1-1/2 inchApplicationAerial Lift
Specifications MetSAE J517 and 100R7Hose Reinforcement MaterialFiber
Outside Diameter0.470 inchWeight0.09 kg/m
Inside Diameter1/4 inchMaximum Operating Pressure20.7 MPa
DivisionParflex DivisionSize-4
Maximum Operating Temperature212 °FCompatible Fitting56 Series
Hose Inner Tube MaterialPolyamide (PA)Design Factor4:1
