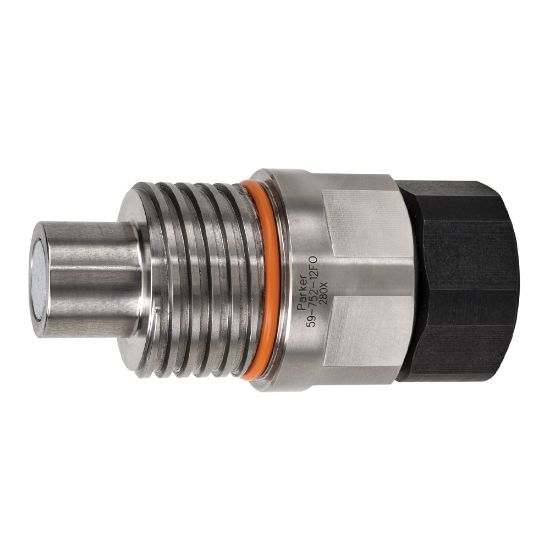

59-502-8FP - Non-Spill, Flat Face Hydraulic ACME Thread to Connect Quick Couplings - 59 Series

Parker's non-spill, flat face connect under pressure hydraulic couplers and nipples are heavy duty for use in high pressure, high impulse hydraulic applications where fluid lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	5 in stock

SKU 59-502-8FP

$275.32/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Size (inch)	1/2
Connection Thread Size (inch)	1/2 - 14	Coupling Half	Nipple
Connection Type	NPSF	Maximum Working Pressure (psi)	6000
Maximum Operating Temperature	250 °F	Valve Type	Non-spill
Division	Quick Coupling Division	Seal Material	Nitrile - Polyurethane
Plating Type	Zinc Nickel plating - Black FNC coating	Media	Hydraulic
Minimum Operating Temperature	-40 °F	Application	High impulse hydraulic, high pressure, non-spill, connect-disconnect under pressure
Body Material	Steel	Maximum Operating Pressure	6000 psi
Division	Quick Coupling Division	Thread Size	Female

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
