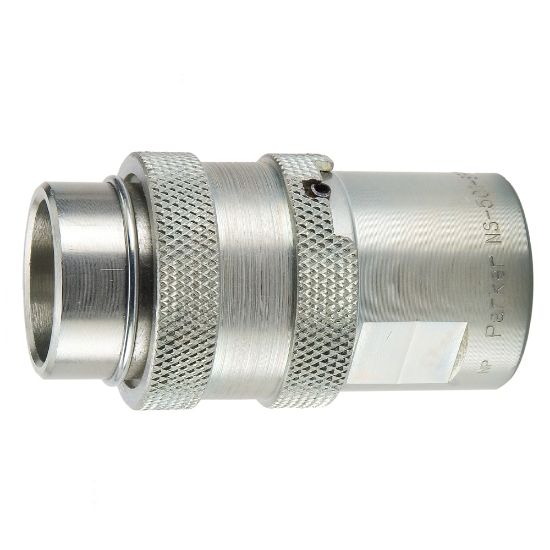

NS-371-6FB - Non-Spill, Flat Face, Push to Connect Quick Couplings with Sleeve Lock - NS Series

Parker's non-spill, flat face hydraulic couplers are ideal for use across a variety of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	4 in stock

SKU NS-371-6FB

$136.04/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Female Coupler
Body Size (inch)	3/8	Connection Thread Size (inch)	G 3/8
Connection Type	Female BSPP	Minimum Operating Temperature	-40 °F
Hex Size	1.06 inch	Plating Type	Zinc with Clear Trivalent Chromate
Maximum Operating Pressure	2500 psi	Body Material	Steel
Dimensional Weight	0.05341726618705036 lb	Flow Rate	10 Gal/min
Application	Hydraulics	Division	Quick Coupling Division
Valve Type	Non-spill	Locking Sleeve Included	Yes
Product Type	Push to Connect	Seal Material	Nitrile
Maximum Operating Temperature	250 °F

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
