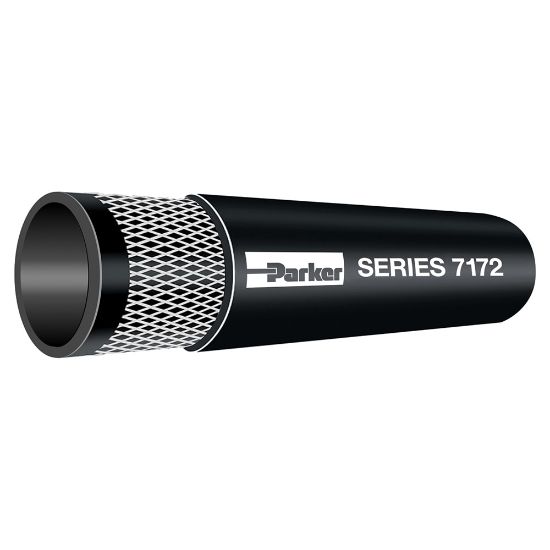

7172-38200 - Nonconductive Cable Cover Hose, Series 7172

Note: This product is no longer available - please contact us for further assistance

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 98 days
Partner Available:	Backordered

SKU 7172-38200

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/8
Maximum Working Pressure (psi)	200	Inside Diameter	3/8
Cover Color	Black	Weight	0.11
Maximum Operating Pressure	200	Design Factor	4:1
Hose Inner Tube Material	Nitrile/Styrene Butadiene Rubber (SBR) Blend	Maximum Operating Temperature	212
Length per Package	650	Division	Hose Products Division
Minimum Bend Radius	3	Minimum Operating Temperature	-20
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	Media	Air
Package Type	Reel	Outside Diameter	0.600
Hose Reinforcement Material	2 Plies of Textile	Application	Welding

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
