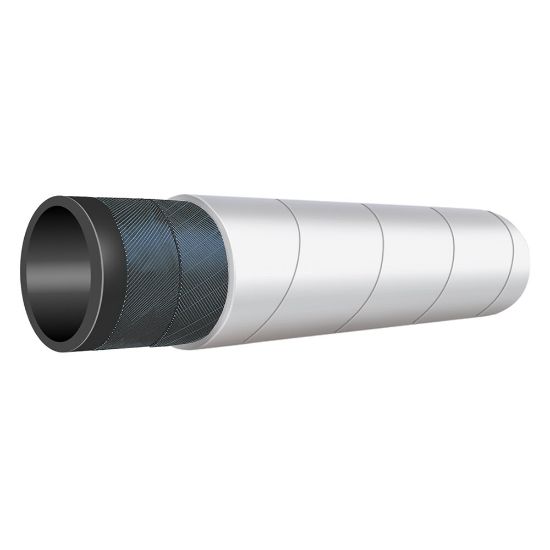

7385-1000 - Nonconductive Softwall Furnace Door Coolant Hose, Series 7385

Note: This product is no longer available - please contact us for further assistance

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU 7385-1000

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1
Division	Hose Products Division	Application	Water
Media	Water	Maximum Operating Pressure	150 psi
Maximum Operating Temperature	100 °C	Minimum Operating Temperature	-20 °F
Weight	0.51 lb/ft	Outside Diameter	1.4 inch
Cover Material	Aramid Fabric	Inside Diameter	1 inch
Minimum Bend Radius	203 inch	Hose Inner Tube Material	Styrene Butadiene Rubber (SBR)
Hose Reinforcement Material	2 Plies of Textile	Cover Color	Off-White

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
