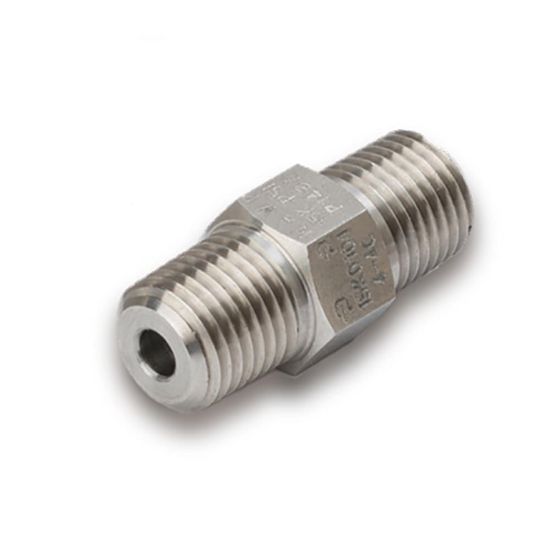

15K0101-6-6C - NPT Adapters

Parker's stainless steel NPT adapters have working pressure ratings from 10,000 psi to 15,000 psi, depending on size.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	4 in stock

SKU 15K0101-6-6C

$212.32/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Straight
Connection 1 Type	Male NPT	Connection 2 Type	Male NPT
Connection 1 Thread Size	3/8"-18 NPT	Connection 2 Thread Size	3/8"-18 NPT
Materials of Construction	Stainless Steel	Shape	Straight
Maximum Operating Pressure	15000 psi	Connection 1 Type	Male
Overall Length	43.18 mm	Connection 2 Size	3/8"-18 inch
Height	n/a	Width	n/a
Division	Parflex Division	Connection 1 Size	3/8"-18 inch
Hex Size	0.75 inch	Connection 2 Type	NPT Thread

Product resources

Literature and Reference Materials

Catalog 4900 - Parflex Ultra High Pressure Thermoplastic Hose, Fittings and Accessories--CAT-4900 (PDF)

Compliance, Certifications & Safety
