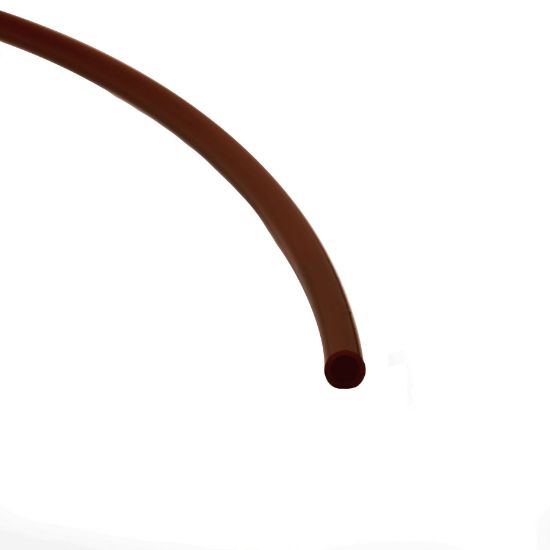

1120-6B-BRN-500 - Nylon Air Brake Tubing

Parflex makes enough air brake tubing a year to circle the globe twice. Brake Line tubing provides excellent kink resistance. This means reduced, and or, eliminated kinked lines resulting in less rework at installation on semi-truck air lines.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	414 in stock

SKU 1120-6B-BRN-500

$2.15/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Tube O.D. (inch)	3/8
Color	Brown	Standard Pack Qty (ft)	500
Cover Color	Brown	Division	Parflex Division
Size	-6	Compatible Fitting	SAE Cartridges
Maximum Operating Temperature	200 °F	Product Type	Reinforced
Tube Material	Polyamide (PA) Fiber Reinforcement	Media	Air
Color	Brown	Cover Material	Polyamide (PA)
Tube Inside Diameter	6.4 mm	Minimum Operating Temperature	-40 °F
Minimum Bend Radius	38.1 mm	Specifications Met	SAE J844
Tube Outside Diameter	0.375 inch	Minimum Burst Pressure	96.5 bar
Application	Transportation	Maximum Operating Pressure	10.3 bar
Weight	0.04 kg/m
