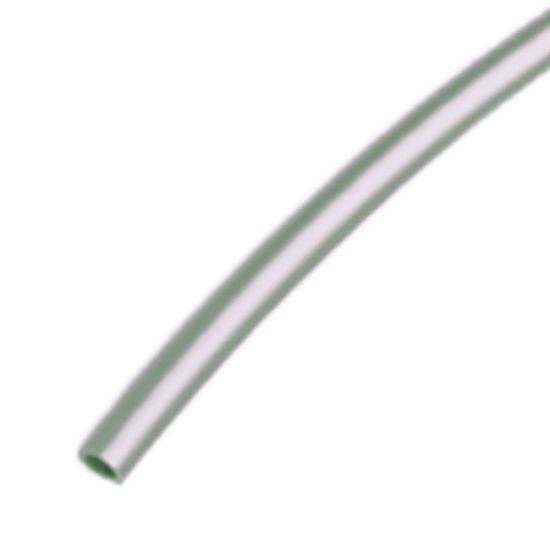

1120-6B-SIL-500 - Nylon Air Brake Tubing

Name: 1120-6B-SIL-500 - Nylon Air Brake Tubing
SKU: 1120-6B-SIL-500
Price: 1.65 USD
Availability: InStock

Parflex makes enough air brake tubing a year to circle the globe twice. Brake Line tubing provides excellent kink resistance. This means reduced, and or, eliminated kinked lines resulting in less rework at installation on semi-truck air lines.

Manufacturer: Parker

Availability:

500 in stock

Springfield, MO

500

Partner Available:

1970 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 1120-6B-SIL-500

$1.65/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Tube O.D. (inch)	3/8
Color	Silver	Standard Pack Qty (ft)	500
Cover Color	Silver	Weight	0.04 kg/m
Maximum Operating Temperature	93 °C	Compatible Fitting	Prestomatic
Division	Parflex Division	Size	-6
Tube Material	Polyamide (PA) Fiber Reinforcement	Color	Silver
Tube Inside Diameter	0.251 inch	Media	Air
Product Type	Reinforced	Cover Material	Polyamide (PA)
Minimum Operating Temperature	-40 °F	Minimum Bend Radius	1-1/2 inch
Tube Outside Diameter	9.5 mm	Minimum Burst Pressure	1400 psi
Application	Transportation	Specifications Met	SAE J844
Maximum Operating Pressure	10.3 bar
