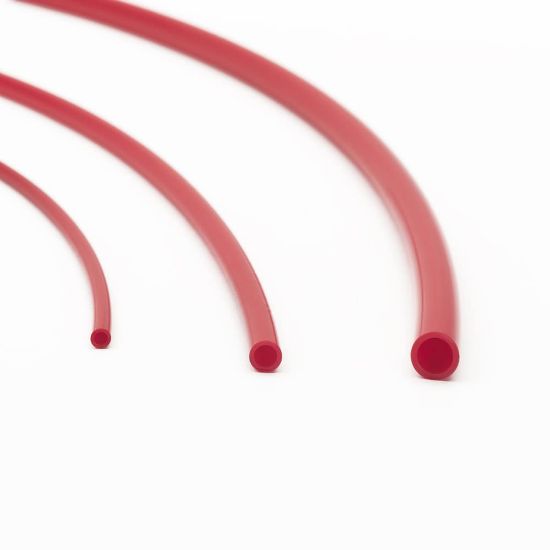

N-2.5-025-RED - Nylon Tubing

Nylon plastic tubing tubing is formulated from abrasion-resistant, heat and light-stabilized nylon that is capable of operating at 200°F. It exhibits low-level water absorption and is chemically resistant. (Series N/NB)

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	140 in stock

SKU N-2.5-025-RED

$0.63/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Standard Pack Qty (ft)	250
Order Size	5/32	Color	Red
Weight	0.005 lb/ft	Maximum Operating Pressure	20.7 bar
Minimum Burst Pressure	1200 psi	Application	Machine Tools
Division	Parflex Division	Length per Package	76.2 m
Media	Air	Tube Material	Polyamide (PA)
Maximum Operating Temperature	200 °F	Compatible Fitting	Hi-Duty
Size	-2.5	Minimum Bend Radius	12.7 mm
Minimum Operating Temperature	-54 °C	Specifications Met	n/a
Tube Outside Diameter	5/32 inch	Color	Red
Cover Material	n/a	Tube Inside Diameter	2.7 mm
