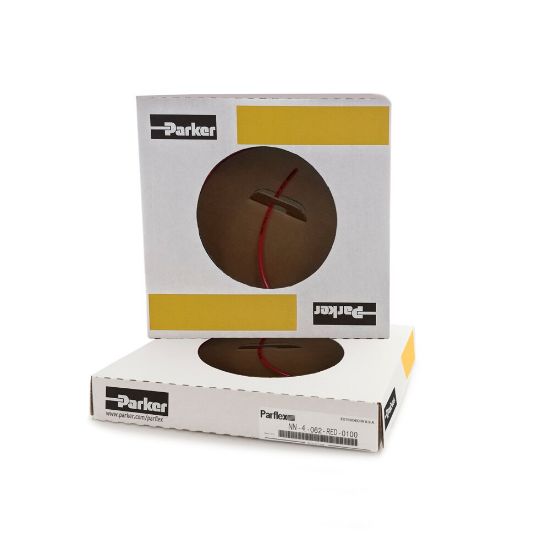

N-4-035-RED-0100 - Nylon Tubing

Nylon plastic tubing tubing is formulated from abrasion-resistant, heat and light-stabilized nylon that is capable of operating at 200°F. It exhibits low-level water absorption and is chemically resistant. (Series N/NB)

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	Backordered

SKU N-4-035-RED-0100

$1.35/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Order Size	1/4
Color	Red	Standard Pack Qty (ft)	100 ft box
Minimum Bend Radius	22.4 mm	Specifications Met	n/a
Minimum Operating Temperature	-54 °C	Minimum Burst Pressure	1000 psi
Application	Fluid Transfer	Tube Outside Diameter	6.4 mm
Maximum Operating Pressure	17.2 bar	Weight	0.011 lb/ft
Compatible Fitting	Hi-Duty	Maximum Operating Temperature	93 °C
Length per Package	34.8 m Box	Division	Parflex Division
Size	-4	Cover Material	n/a
Color	Red	Tube Inside Diameter	4.6 mm
Media	Chemicals	Tube Material	Polyamide (PA)
