*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

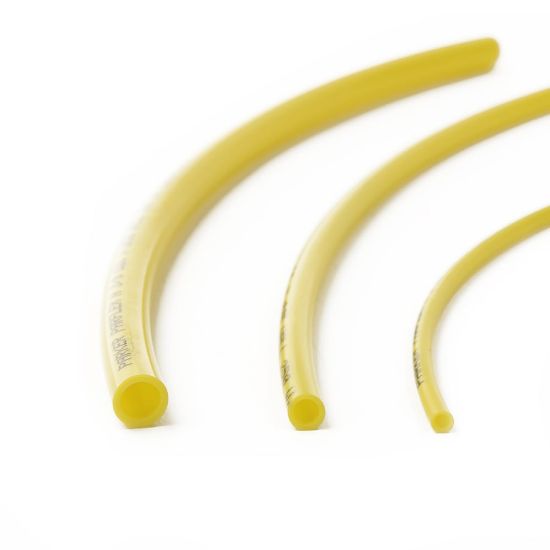

N-4-035-YEL - Nylon Tubing

Name: N-4-035-YEL - Nylon Tubing
SKU: N-4-035-YEL
Price: 1.03 USD
Availability: InStock

Nylon plastic tubing tubing is formulated from abrasion-resistant, heat and light-stabilized nylon that is capable of operating at 200°F. It exhibits low-level water absorption and is chemically resistant. (Series N/NB)

Manufacturer: Parker

Availability:

347 in stock

Kansas City, KS	220
Wichita, KS	127

Partner Available:

2523 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU N-4-035-YEL

$1.03/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Order Size	1/4
Standard Pack Qty (ft)	250	Color	Yellow
Compatible Fitting	Compression	Size	-4
Maximum Operating Temperature	93 °C	Length per Package	250 ft
Division	Parflex Division	Media	Air
Tube Material	Polyamide (PA)	Tube Outside Diameter	1/4 inch
Application	Fluid Transfer	Specifications Met	n/a
Minimum Burst Pressure	1000 psi	Tube Inside Diameter	4.6 mm
Minimum Bend Radius	22.4 mm	Color	Yellow
Minimum Operating Temperature	-65 °F	Cover Material	n/a
Weight	0.016 kg/m	Maximum Operating Pressure	17.2 bar
