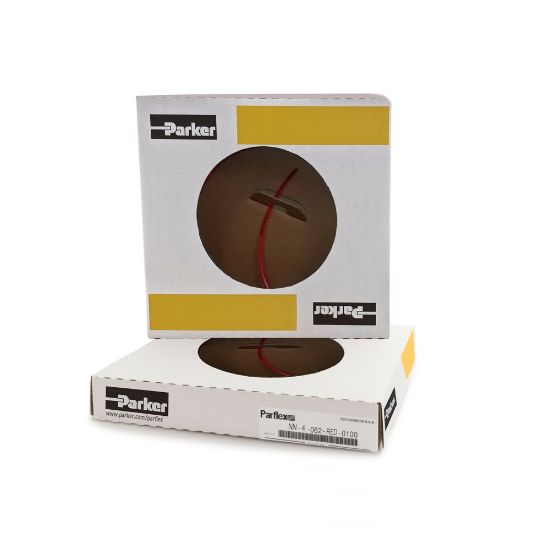

N-6-050-RED-0100 - Nylon Tubing

Nylon plastic tubing tubing is formulated from abrasion-resistant, heat and light-stabilized nylon that is capable of operating at 200°F. It exhibits low-level water absorption and is chemically resistant. (Series N/NB)

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	Backordered

SKU N-6-050-RED-0100

$2.63/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Order Size	3/8
Color	Red	Standard Pack Qty (ft)	100 ft box
Length per Package	30.5 m Box	Compatible Fitting	Hi-Duty
Division	Parflex Division	Maximum Operating Temperature	200 °F
Size	-6	Media	Air
Tube Material	Polyamide (PA)	Specifications Met	n/a
Minimum Burst Pressure	69 bar	Application	Pneumatics
Tube Outside Diameter	9.5 mm	Minimum Bend Radius	28.7 mm
Minimum Operating Temperature	-65 °F	Cover Material	n/a
Color	Red	Tube Inside Diameter	0.275 inch
Maximum Operating Pressure	17.2 bar	Weight	0.023 lb/ft
