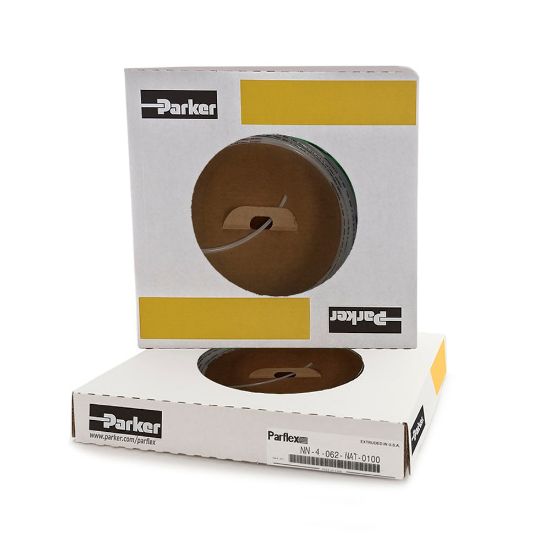

NN-4-035-0100 - Nylon Tubing

Name: NN-4-035-0100 - Nylon Tubing
SKU: NN-4-035-0100
Price: 1.03 USD
Availability: InStock

Nylon plastic tubing tubing is formulated from abrasion-resistant, heat and light-stabilized nylon that is capable of operating at 200°F. It exhibits low-level water absorption and is chemically resistant. (Series N/NB)

Manufacturer: Parker

Availability:

50 in stock

Kansas City, KS

Partner Available:

104 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU NN-4-035-0100

$1.03/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Color	Natural
Order Size	1/4	Standard Pack Qty (ft)	100 ft box
Minimum Bend Radius	22.4 mm	Minimum Burst Pressure	1000 psi
Application	Robotics	Minimum Operating Temperature	-54 °C
Specifications Met	n/a	Tube Outside Diameter	1/4 inch
Weight	0.016 kg/m	Maximum Operating Pressure	17.2 bar
Maximum Operating Temperature	93 °C	Compatible Fitting	TrueSeal™
Division	Parflex Division	Size	-4
Length per Package	34.8 m Box	Cover Material	n/a
Color	Natural	Tube Inside Diameter	0.180 inch
Media	Lubricants	Tube Material	Polyamide (PA)
