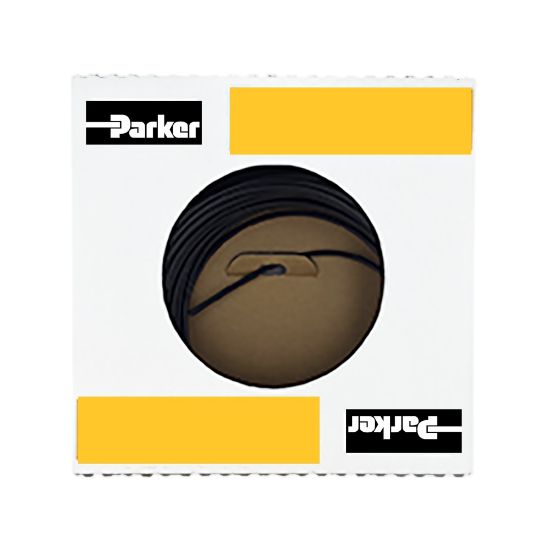

NN-6-050-EZ - Nylon Tubing

Nylon plastic tubing tubing is formulated from abrasion-resistant, heat and light-stabilized nylon that is capable of operating at 200°F. It exhibits low-level water absorption and is chemically resistant. (Series N/NB)

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 7 days
Partner Available:	371 in stock

SKU NN-6-050-EZ

Products specifications

Attribute name	Attribute value
UOM	FT	Order Size	3/8
Standard Pack Qty (ft)	OBSOLETE 100 ft box	Color	Natural
Maximum Operating Pressure	250	Weight	0.023
Size	-6	Maximum Operating Temperature	200
Compatible Fitting	Compression	Division	Parflex Division
Length per Package	100 ft Box	Cover Material	n/a
Color	Natural	Tube Inside Diameter	0.275
Media	Air	Tube Material	Polyamide (PA)
Minimum Burst Pressure	69	Application	Fluid Transfer
Specifications Met	n/a	Minimum Operating Temperature	-54
Tube Outside Diameter	9.5	Minimum Bend Radius	28.7
