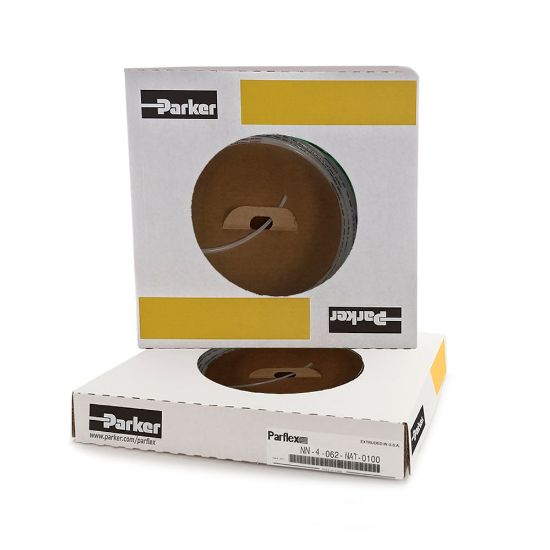

NN-8-062-0100 - Nylon Tubing

Nylon plastic tubing tubing is formulated from abrasion-resistant, heat and light-stabilized nylon that is capable of operating at 200°F. It exhibits low-level water absorption and is chemically resistant. (Series N/NB)

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	855 in stock

SKU NN-8-062-0100

$4.00/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Color	Natural
Standard Pack Qty (ft)	100 ft box	Order Size	1/2
Specifications Met	n/a	Minimum Burst Pressure	1000 psi
Application	Pneumatics	Tube Outside Diameter	1/2 inch
Color	Natural	Minimum Bend Radius	31.8 mm
Cover Material	n/a	Minimum Operating Temperature	-54 °C
Tube Inside Diameter	0.375 inch	Weight	0.039 lb/ft
Maximum Operating Pressure	250 psi	Division	Parflex Division
Size	-8	Length per Package	100 ft Box
Media	Chemicals	Maximum Operating Temperature	93 °C
Compatible Fitting	TrueSeal™	Tube Material	Polyamide (PA)
