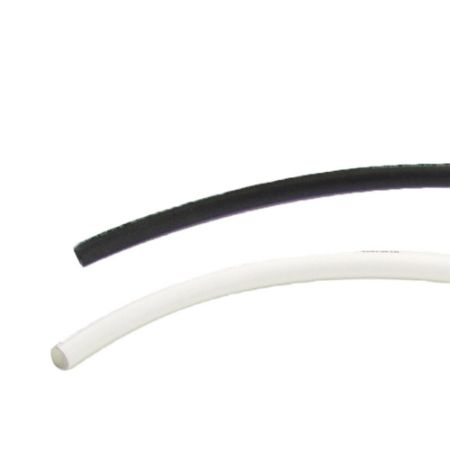

Nylon Tubing - NR Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

NR Series High Strength Semi-Rigid Nylon Tubing features a high tensile strength and excellent coupling retention in high pressure, temperature and vibration environments. Sometimes this tubing is referred to as “hard nylon tubing” because it stiffer than standard nylon tubing. It is manufactured from high grade nylon resin. Tubing resists high ambient temperatures making it suitable for applications that involve high-pressure pneumatics and oils, in lubrication systems, for marine control systems and in process lines for chemicals.

Markets:
• Industrial
• Marine
• Fluid Handling
< br/>Features/Benefits:
• High grade nylon resins without the addition of plasticizers for higher pressure tubing applications
• Better chemical resistance than Series N, good resistance to high ambient temperature and low moisture absorption for superior performance
• High tensile strength and excellent coupling retention in high pressure, temperature and vibration environments

Applications:
• High-pressure pneumatics and oils
• Lubrication systems
• Marine control systems
• Process lines for chemicals
• For tube support, use reference Catalog 4660 Tubing/Fitting Compatibility Chart

Technical Specifications:
• Working and burst pressures rated at 73°F (23°C)
• The wall thickness is for reference only
• Packaged on 100 ft reel - contact Customer Service for more package quantities

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	UOM	Color	Order Size	Standard Pack Qty (ft)	Minimum Burst Pressure	Application	Minimum Operating Temperature	Tube Outside Diameter	Specifications Met	Minimum Bend Radius	Cover Color	Maximum Operating Pressure	Weight	Size	Maximum Operating Temperature	Compatible Fitting	Length per Package	Division	Cover Material	Tube Inside Diameter	Media	Tube Material	Pkg Qty/UOM	Outer Diameter 1	Color	Pkg Qty	Wall Thickness	Inner Diameter	Max Pressure	Material	Material	Series	Color	Outer Diameter	Trade Name	Inner Diameter	Parker Group	Outer Diameter Inch/mm	Inch/Metric	Wall Thickness	Distinct Properties	Max Pressure Range	Parker Division	Application	Inner Diameter Inch/mm	Wall Thickness Inch/mm
NBR-2-026	Backordered	1607 in stock	$0.89/foot	FT		Black	1/8	500	2500 psi	Marine	-60 °F	1/8 inch	n/a	0.38 inch	n/a	625 psi	0.006 kg/m	-2	93 °C	Compress-Align®	34.8 m	Parflex Division	n/a	0.073 inch	Water	Polyamide (PA)
NBR-3-039	Backordered	Backordered	$0.81/foot	FT		Black	3/16	500	2500 psi	Marine	-51 °C	3/16 inch	n/a	0.63 inch	n/a	625 psi	0.012 kg/m	-3	200 °F	Compress-Align®	500 ft	Parflex Division	n/a	2.8 mm	Hydraulic Fluids	Polyamide (PA)
NBR-4-035	2695 in stock	180 in stock	$1.05/foot	FT		Black	1/4	250	1700 psi	Lubrication	-60 °F	6.4 mm	n/a	25.4 mm	n/a	29.3 bar	0.016 kg/m	-4	93 °C	Compress-Align®	250 ft	Parflex Division	n/a	0.180 inch	Lubricants	Polyamide (PA)
NBR-4-050	619 in stock	6084 in stock	$1.35/foot	FT		Black	1/4	250	2500 psi	Pneumatics	-60 °F	1/4 inch	n/a	22.3 mm	n/a	43.1 bar	0.021 kg/m	-4	93 °C	Compress-Align®	76.2 m	Parflex Division	n/a	3.9 mm	Hydraulic Fluids	Polyamide (PA)
NBR-5-040	Backordered	648 in stock	$1.96/foot	FT		Black	5/16	250	1700 psi	Marine	-60 °F	5/16 inch	n/a	38.1 mm	n/a	29.3 bar	0.015 lb/ft	-5	93 °C	Hi-Duty	250 ft	Parflex Division	n/a	5.9 mm	Water	Polyamide (PA)
NBR-6-048	Backordered	501 in stock	$2.62/foot	FT		Black	3/8	250	117.2 bar	Fluid Transfer	-60 °F	3/8 inch	n/a	1.75 inch	n/a	29.3 bar	0.033 kg/m	-6	93 °C	Flow Controls	76.2 m	Parflex Division	n/a	7.1 mm	Fuels (Oil)	Polyamide (PA)
NBR-6-075	Backordered	315 in stock	$4.20/foot	FT		Black	3/8	250	2500 psi	Marine	-60 °F	9.5 mm	n/a	38.1 mm	n/a	625 psi	0.032 lb/ft	-6	200 °F	Flow Controls	76.2 m	Parflex Division	n/a	0.225 inch	Air	Polyamide (PA)
NBR-8-062	Backordered	Backordered	$3.30/foot	FT		Black	1/2	250	1400 psi	Lubrication	-60 °F	1/2 inch	n/a	60.5 mm	n/a	26 bar	0.038 lb/ft	-8	93 °C	Compress-Align®	76.2 m	Parflex Division	n/a	0.375 inch	Water	Polyamide (PA)
NBR-8-075	Backordered	750 in stock	$6.29/foot	FT		Black	1/2	250	172.4 bar	Marine	-60 °F	12.7 mm	n/a	2.50 inch	n/a	43.1 bar	0.067 kg/m	-8	93 °C	Compress-Align®	76.2 m	Parflex Division	n/a	8.9 mm	Hydraulic Fluids	Polyamide (PA)
NNR-2-017	Backordered	Backordered	$0.49/foot	FT	FT	Natural	1/8	500	1700 psi	Pneumatics	-60 °F	1/8 inch	n/a	0.50 inch	n/a	29.3 bar	0.003 lb/ft	-2	93 °C	Compression	34.8 m	Parflex Division	n/a	0.091 inch	Water	Polyamide (PA)	500 FT	1/8 Inch	Natural	500	0.017 Inch	0.091 Inch	425 PSI (30 bar)	Nylon	Nylon	N	Natural	1/8 Inch	Parflex	0.091 Inch	Fluid Connector	Inch	Inch	0.017 Inch	Chemical Resistant	250 to 499 PSI (17 to 34 bar)	Parflex	Pneumatic	Inch	Inch
NNR-2-026	168 in stock	2693 in stock	$0.69/foot	FT	FT	Natural	1/8	500	2500 psi	Marine	-51 °C	3.2 mm	n/a	0.38 inch	n/a	625 psi	0.004 lb/ft	-2	93 °C	Fast & Tite®	34.8 m	Parflex Division	n/a	0.073 inch	Lubricants	Polyamide (PA)	500 FT	1/8 Inch	Natural	500	0.026 Inch	0.073 Inch	625 PSI (40 bar)	Nylon	Nylon	N	Natural	1/8 Inch	Parflex	0.073 Inch	Fluid Connector	Inch	Inch	0.026 Inch	Chemical Resistant	500 to 999 PSI (34 to 69 bar	Parflex	Pneumatic	Inch	Inch
NNR-3-039	525 in stock	2345 in stock	$0.81/foot	FT	FT	Natural	3/16	500	2500 psi	Fluid Transfer	-60 °F	4.8 mm	n/a	0.63 inch	n/a	625 psi	0.012 kg/m	-3	200 °F	Flow Controls	500 ft	Parflex Division	n/a	0.110 inch	Fuels (Oil)	Polyamide (PA)	500 FT	3/16 Inch	Natural	500	0.039 Inch	0.11 Inch	625 PSI (40 bar)	Nylon	Nylon	N	Natural	3/16 Inch	Parflex	0.11 Inch	Fluid Connector	Inch	Inch	0.039 Inch	Chemical Resistant	500 to 999 PSI (34 to 69 bar	Parflex	Pneumatic	Inch	Inch
NNR-4-035	Backordered	2712 in stock	$1.34/foot	FT	FT	Natural	1/4	250	117.2 bar	Pneumatics	-60 °F	1/4 inch	n/a	1 inch	n/a	425 psi	0.016 kg/m	-4	200 °F	Fast & Tite®	250 ft	Parflex Division	n/a	4.6 mm	Air	Polyamide (PA)	250 FT	1/4 Inch	Natural	250	0.035 Inch	0.18 Inch	425 PSI (30 bar)	Nylon	Nylon	N	Natural	1/4 Inch	Parflex	0.18 Inch	Fluid Connector	Inch	Inch	0.035 Inch	Chemical Resistant	250 to 499 PSI (17 to 34 bar)	Parflex	Pneumatic	Inch	Inch
NNR-4-050	180 in stock	6500 in stock	$1.35/foot	FT	FT	Natural	1/4	250	172.4 bar	Lubrication	-51 °C	1/4 inch	n/a	22.3 mm	n/a	43.1 bar	0.021 kg/m	-4	200 °F	Fast & Tite®	250 ft	Parflex Division	n/a	3.9 mm	Lubricants	Polyamide (PA)	250 FT	1/4 Inch	Natural	250	0.05 Inch	0.15 Inch	625 PSI (40 bar)	Nylon	Nylon	N	Natural	1/4 Inch	Parflex	0.15 Inch	Fluid Connector	Inch	Inch	0.05 Inch	Chemical Resistant	500 to 999 PSI (34 to 69 bar	Parflex	Pneumatic	Inch	Inch
NNR-5-040	22 in stock	542 in stock	$1.50/foot	FT	FT	Natural	5/16	250	117.2 bar	Marine	-51 °C	5/16 inch	n/a	1.50 inch	n/a	29.3 bar	0.022 kg/m	-5	93 °C	Hi-Duty	250 ft	Parflex Division	n/a	5.9 mm	Fuels (Oil)	Polyamide (PA)	250 FT	5/16 Inch	Natural	250	0.04 Inch	0.233 Inch	425 PSI (30 bar)	Nylon	Nylon	N	Natural	5/16 Inch	Parflex	0.233 Inch	Fluid Connector	Inch	Inch	0.04 Inch	Chemical Resistant	250 to 499 PSI (17 to 34 bar)	Parflex	Pneumatic	Inch	Inch
NNR-6-048	247 in stock	374 in stock	$2.02/foot	FT	FT	Natural	3/8	250	117.2 bar	Pneumatics	-51 °C	9.5 mm	n/a	1.75 inch	n/a	425 psi	0.022 lb/ft	-6	93 °C	Prestolok®	250 ft	Parflex Division	n/a	0.279 inch	Air	Polyamide (PA)	250 FT	3/8 Inch	Natural	250	0.048 Inch	0.279 Inch	425 PSI (30 bar)	Nylon	Nylon	N	Natural	3/8 Inch	Parflex	0.279 Inch	Fluid Connector	Inch	Inch	0.048 Inch	Chemical Resistant	250 to 499 PSI (17 to 34 bar)	Parflex	Pneumatic	Inch	Inch
NNR-6-075	Backordered	2423 in stock	$4.23/foot	FT	FT	Natural	3/8	250	172.4 bar	Pneumatics	-51 °C	3/8 inch	n/a	1.50 inch	n/a	43.1 bar	0.048 kg/m	-6	93 °C	Compression	76.2 m	Parflex Division	n/a	5.7 mm	Hydraulic Fluids	Polyamide (PA)	250 FT	3/8 Inch	Natural	250	0.075 Inch	0.225 Inch	625 PSI (40 bar)	Nylon	Nylon	N	Natural	3/8 Inch	Parflex	0.225 Inch	Fluid Connector	Inch	Inch	0.075 Inch	Chemical Resistant	500 to 999 PSI (34 to 69 bar	Parflex	Pneumatic	Inch	Inch
NNR-8-062	Backordered	487 in stock	$4.24/foot	FT	FT	Natural	1/2	250	117.2 bar	Pneumatics	-60 °F	12.7 mm	n/a	60.5 mm	n/a	26 bar	0.038 lb/ft	-8	93 °C	TrueSeal™	76.2 m	Parflex Division	n/a	9.5 mm	Hydraulic Fluids	Polyamide (PA)	250 FT	1/2 Inch	Natural	250	0.062 Inch	0.376 Inch	375 PSI (30 bar)	Nylon	Nylon	N	Natural	1/2 Inch	Parflex	0.376 Inch	Fluid Connector	Inch	Inch	0.062 Inch	Chemical Resistant	250 to 499 PSI (17 to 34 bar)	Parflex	Pneumatic	Inch	Inch
NNR-8-075	Backordered	430 in stock	$6.29/foot	FT	FT	Natural	1/2	250	2500 psi	Pneumatics	-51 °C	1/2 inch	n/a	63.5 mm	n/a	625 psi	0.067 kg/m	-8	93 °C	TrueSeal™	76.2 m	Parflex Division	n/a	8.9 mm	Water	Polyamide (PA)	250 FT	1/2 Inch	Natural	250	0.075 Inch	0.35 Inch	550 PSI (40 bar)	Nylon	Nylon	N	Natural	1/2 Inch	Parflex	0.35 Inch	Fluid Connector	Inch	Inch	0.075 Inch	Chemical Resistant	500 to 999 PSI (34 to 69 bar	Parflex	Pneumatic	Inch	Inch
