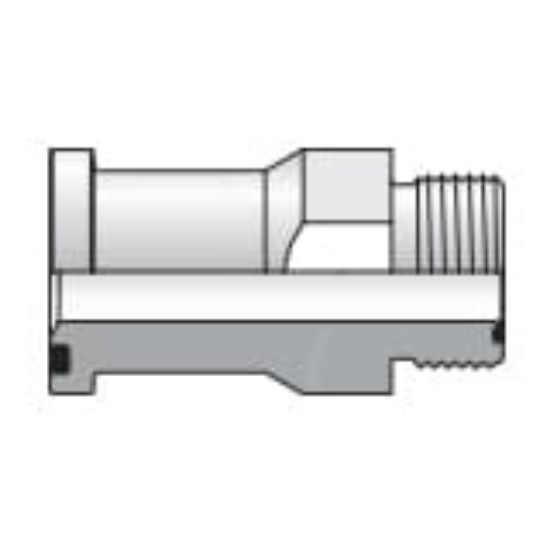

16 LOHQ2-S - O-ring Face Seal, 37° Flare and Flareless Code 61 and 62 Flange Adapters

Parker's flange adapters with 4-bolt flange connections adapt to Parker's Seal-Lok™ O-ring Face Seal (ORFS), Triple-Lok® 37° flare, Ferulok® inch flareless fittings, and socket pipe weld, and have achieved world-wide acceptance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 63 days
Partner Available:	10 in stock

SKU 16 LOHQ2-S

$106.23/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Straight
Body Material	Steel	Connection Style	O-ring Face Seal
Flange	Code 62	Flange Size (inch)	1
Connection Tube O.D. (inch)	1	Division	Tube Fittings Division
Specifications Met	ISO 6162-2, SAE J518	Maximum Dynamic Pressure	6000 psi
O-Ring Material	90 Durometer Nitrile	Body Material	Steel
Dimensional Weight	0.24172661870503598 lb

Product resources

Literature and Reference Materials

Industrial Tube Fittings, Adapters and Equipment - Cat. 4300 (PDF)

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)
