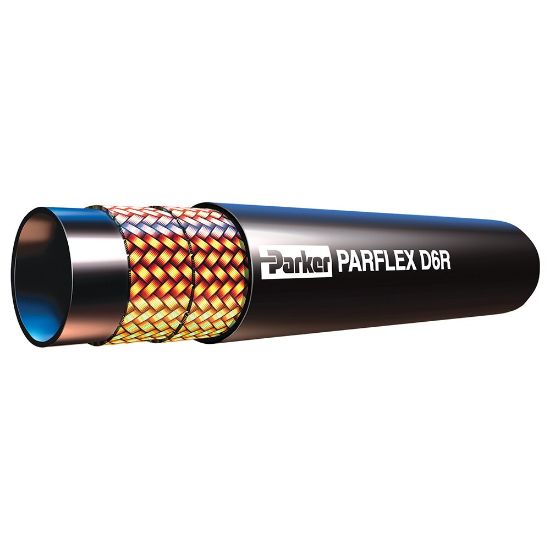

D6R04-500 - OBSOLETE - 100R17 Hose - D6R/D6RX

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 7 days
Partner Available:	789 in stock

SKU D6R04-500

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/4
Inside Diameter	1/4 inch	Weight	0.10 lb/ft
Maximum Operating Pressure	3045 psi	Outside Diameter	0.460 inch
Maximum Operating Temperature	121 °C	Size	-4
Division	Parflex Division	Product Type	Hydraulic Hose
Media	Petroleum Hydraulic Fluids	Compatible Fitting	56 Series
Hose Inner Tube Material	Copolyester	Design Factor	4
Application	Industrial Machinery	Specifications Met	MSHA
Hose Reinforcement Material	1 Braid of High Tensile Steel Wire	Cover Material	Synthetic Rubber
Cover Structure	Smooth	Minimum Bend Radius	1-1/2 inch
Minimum Operating Temperature	-40 °C
