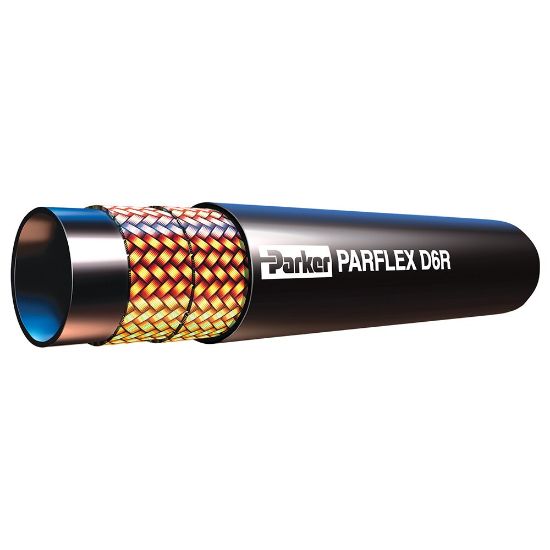

D6R06-500 - OBSOLETE - 100R17 Hose - D6R/D6RX

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 7 days
Partner Available:	138 in stock

SKU D6R06-500

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/8
Application	Material Handling	Specifications Met	SAE 100R17
Minimum Operating Temperature	-40 °C	Hose Reinforcement Material	1 Braid of High Tensile Steel Wire
Minimum Bend Radius	50.8 mm	Cover Structure	Smooth
Outside Diameter	0.610 inch	Maximum Operating Pressure	210 bar
Weight	0.25 kg/m	Inside Diameter	10 mm
Hose Inner Tube Material	Copolyester	Compatible Fitting	56 Series
Maximum Operating Temperature	250 °F	Division	Parflex Division
Size	-6	Cover Material	Synthetic Rubber
Media	Lubricants	Product Type	Hydraulic Hose
Design Factor	4
