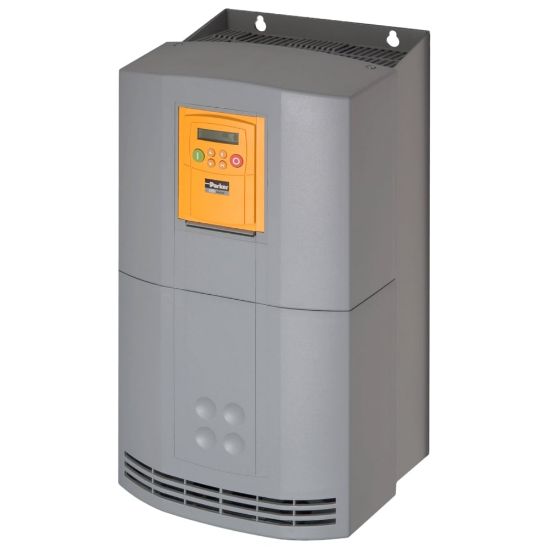

650V/0010/230/1BN - OBSOLETE: AC Variable Frequency Drives, HP Rated - AC650V Series

This product is no longer available – please refer to the “Product Support” or “Recommended products” section of this page for details on any alternative products, or contact us for further assistance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 3 days
Partner Available:	Backordered

SKU 650V/0010/230/1BN

Products specifications

Attribute name	Attribute value
UOM	EA	Input Voltage	3*230VAC
Brake Switch Option	Yes	EMC Filter Included	No
Output HP Rating (Normal Duty)	15	Aux Supply Input Voltage	None
Mounting Style	Wall Mounted	Operating Altitude	up to 1000 m ASL (derate > 1000m)
Communication Interface	RS232/RS485	Division	Electronic Motion and Controls Division
Output Power	0 to 10 HP	Modes of Control	V/Hz
Input Voltage	1*230 VAC	Overload Rating	Heavy Duty Rating (Constant Torque) : 150% for 60s %
Operating Temperature	0 to 40 °C (derate up to 50°C max)	Specifications Met	UL Listed

Product resources

Literature and Reference Materials

Selector Guides

AC650 Family to AC10 Substitution Guide (PDF)
